Condition: |
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. See all condition definitions
|
Size: | 3 TON |
Features: | Automatic Shutoff, Digital Display, Heat/Heat Pump, Heater/Heat Pump, Rechargeable, Sleep Mode | Location: | Commercial & Residential |
Refrigerant: | R410a | Model: |
ASW-H36U2/LFR1D1-US |
Color: |
White |
Cooling BTU/Hr: | 36000 |
Year Manufactured: | 2018 | Cooling Capacity BTU: | 36,000 BTU |
MPN: |
ASW-H36U2/LFR1D1-US |
SEER: | 17 SEER |
Brand: |
AUX Group |
Room Coverage Area: | 1500 to 1749 sq ft |
Voltage: | 208/230 V | Type: | Split System |
UPC: |
Does not apply |
Description:

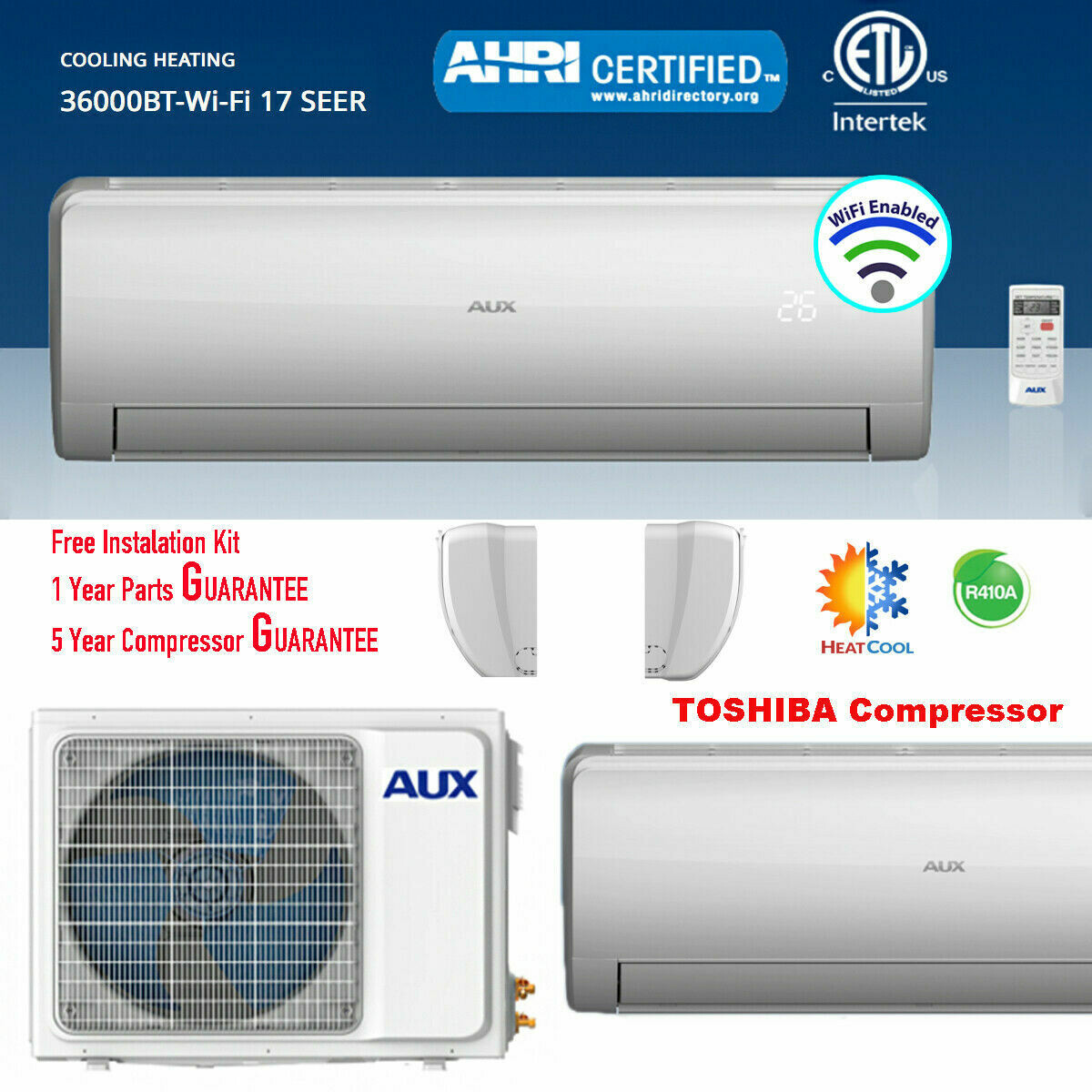

The AUX Mini Split Ductless AC Heat Pump, is a Cost Effective comfort system that can maintain any home cool and comfortable for as long as desired. This High Quality ductless heat pump is energy efficient, packed with great features and priced to meet most household budgets. Whether you need targeted air comfort for a single zone, or need more general air conditioning in the home, the energy efficient performance of the AUX Inverter variable speed compressor will ensure affordability and effectiveness.
Features:
Dimension:
Indoor Unit - 49.2" x 14.17" x 10" (1250mm x 360mm x 253mm)
Outdoor Unit - 35.43" x 27.56" x 13.78" (900mm x 700mmx 350mm)
Voltage:
Note: Installation by a licensed professional required where applicable
What's in Box:
Box 1 - Indoor Unit:
Air Handler x1
Digital LCD Remote Control with Follow Me Technology. (Wi-Fi) x1
Remote Control – (33’/10M range) x1
Remote Control Holder x1
AAA Batteries x2
Product/Installation Manual x1
Indoor Unit Wall Bracket. (Mounting Plate) x1
Box 2 - Outdoor Unit / Installation Kit
Compressor x1
Product/Installation Manual x1
8’ Outdoor AC electrical wire x1
12Ft Pipe Insulation x2
12Ft Flared copper tubing x2
12Ft Indoor 4 led electrical wire x1
Indoor Drain Pipe x1
Plastic Pipe Wrap x2
Neoprene Hole Seal Putty x1
*** NOTE: If the unit is being shipped to you, the Installation Kit is included inside the Outdoor unit box ***
Buying Checklist:
1. Calculate the area footage to be cooled. Multiply the room Length by the room Width in feet, to get the room footage
2. Check the power available. Check out the power source nearby and make sure to match the unit to the power available
3. Measure to fit. Measure the height and width of the installation area and check the dimensions of the unit you select, to make sure it will fit.
Now you can select the ideal air conditioner model, that will supply you with the cooling capacity you need, in the correct installation space available.
*Please note that product will be shipped in two individual packages.Item ships via FedEx Home/ Ground Delivery. Only ships to the lower 48 Contiguous United States. Also due to manufacturer constantly trying to better the products, item may have a small variation in appearance. Also please keep in mind although both packages are shipped out at the same time carrier may separate packages causing boxes to be delivered at different times/days.
Note:
* Due to the connection errors the compressor won’t work and the E5 code will be displayed with the Red lights. Please make sure when the indoor unit wires are connected to the panel of the outdoor unit, the Red wire goes to the pole marked L, the Black goes to N and the White goes to S. And, the ground is connected to double Yellow. Also, the power cord should be connected to Poles L and N.
SHIPPING:
All Systems are Palletized and Shipped from our Warehouse Via FedEx Ground or Freight due to the Weight and Dimensions of the Units.
