BRAND NAME

MRCOOL

SERIES

DIY 5th gen Multi-Zone Mini-splits

MODEL

DIY-MULTI5-36HP230D-O

GTIN

00840255587464

UPC

840255587464

SHORT DESCRIPTION

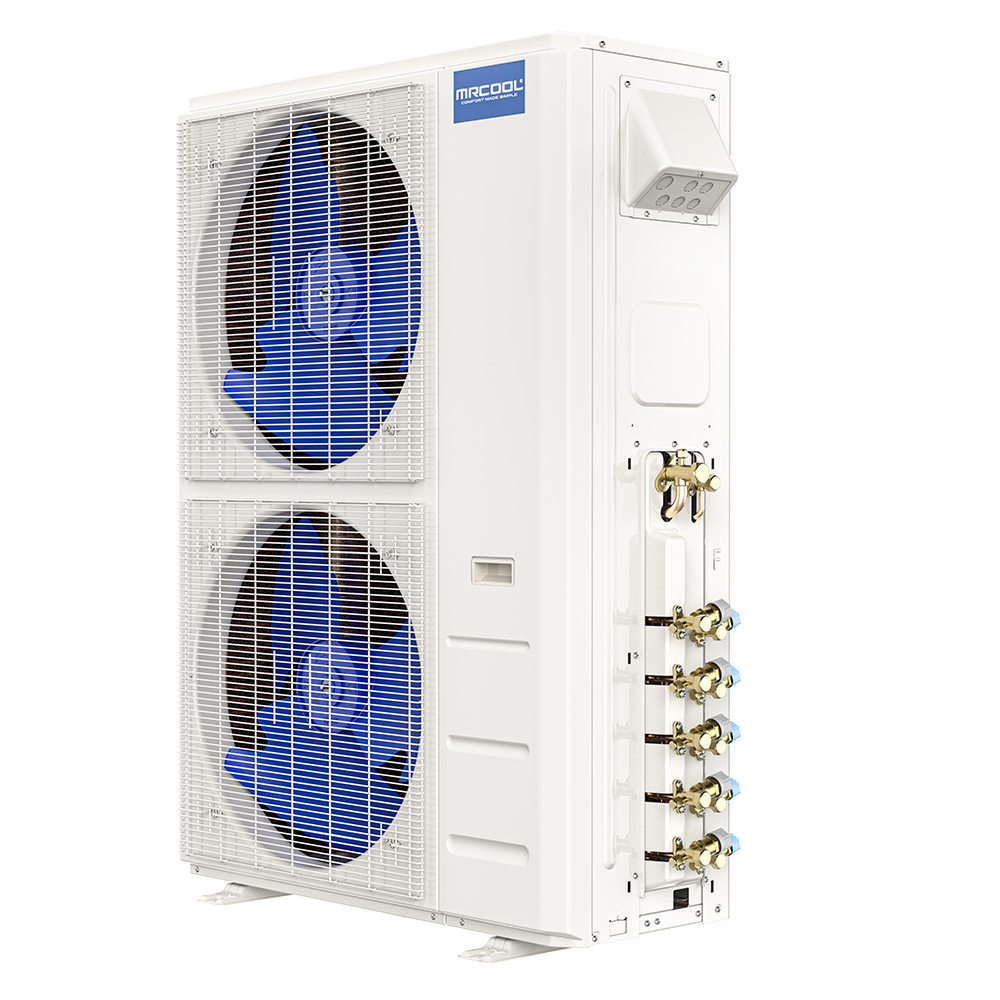

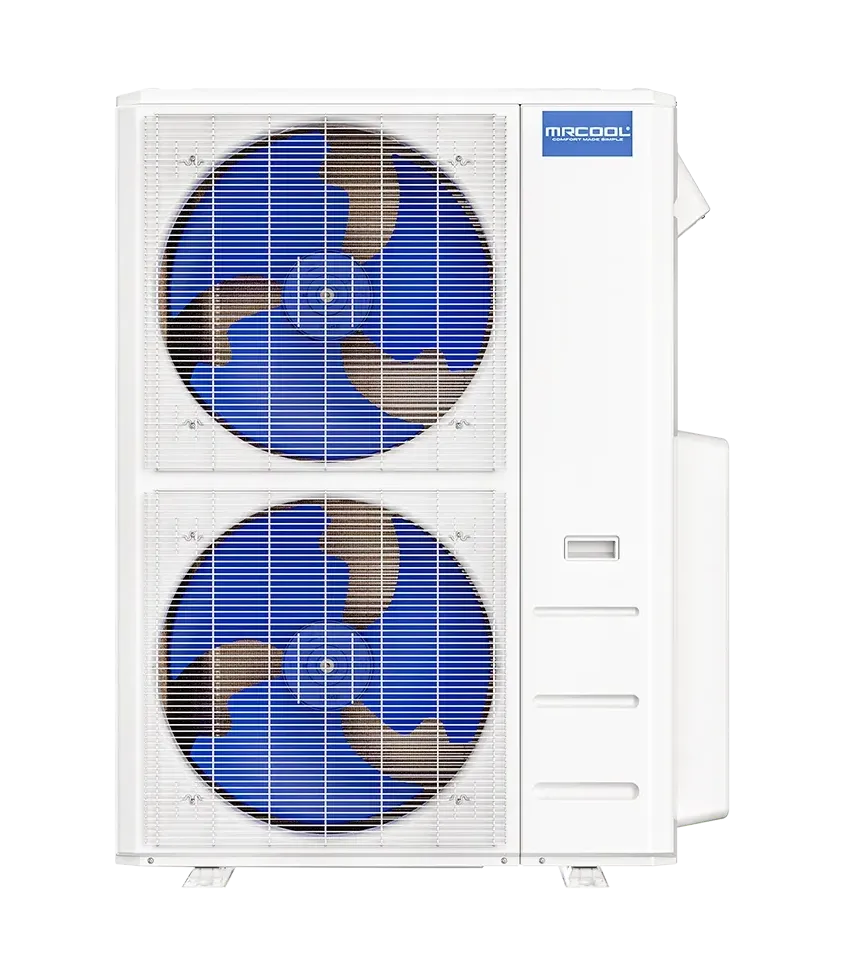

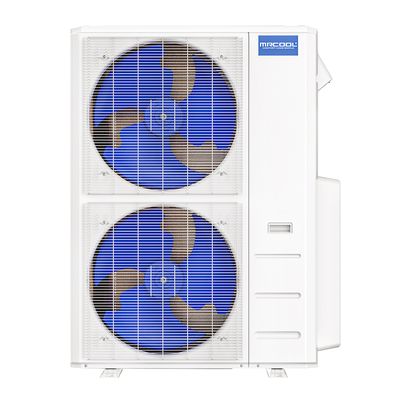

MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v

LONG DESCRIPTION

The brand new 5th Generation MRCOOL® DIY® 36k BTU Multi-Zone Ductless Mini-Split Condenser is the right choice if you need immediate, effective comfort that won’t break the bank! This system, which can be installed without the assistance of an HVAC professional, is one of the most efficient and innovative HVAC options on the market. With this condenser, you’ll be able to heat and cool up to 5 different spaces equaling around 1,500 square feet, meaning you can potentially heat and cool an entire home with just one mini-split system! Our DIY® Mini-Splits are able to forgo the evacuation and charging process because our patented Quick Connect® line sets are pre-charged with R-454B refrigerant, a more efficient and eco-friendly refrigerant than R-410A, which we have previously used. These line sets are sold separately. This unit achieves a SEER2 of 23 and an HSPF2-4 of 9.9. These fittings make installation an incredibly safe and simple process, allowing you to save a lot of time and money. There are a variety of features to explore once the system is up and running. One of them is the ability to integrate your system with the SmartHVAC app, allowing you to control your comfort with the touch of a button. You can even go a step further and link your Amazon Alexa or Google home for touchless operation. With the app, you can set each zone’s temperature, set schedules for each unit, monitor your system’s energy usage, and more. There are even more features to explore that will help you customize your comfort to be exactly what you want. We’ve got your back in the unlikely event that your system malfunctions. Your system will come with a 5 year parts warranty and a 7 year compressor warranty, and if you enroll in the MRCOOL® Care Program, you’ll be able to enjoy the Limited Lifetime Replacement warranty! For the best comfort you’ve ever felt and a sense of accomplishment as icing on the cake, choose the MRCOOL® DIY®!

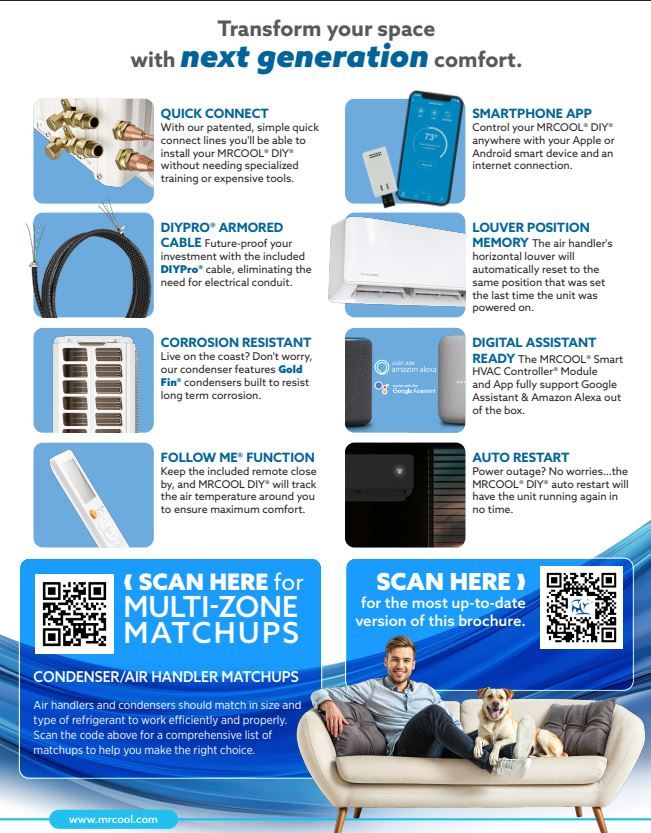

FEATURE LIST

• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

SEER2

23

EER2

12

HSPF2-4

9.9

HSPF2-5

7.5

TONNAGE

3

COOLING CAPACITY (BTU)

34000

HEATING CAPACITY (BTU)

36000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

35

MIN CIRCUIT AMPACITY (A)

30.5

COLOR

White

ZONE CAPACITY

5

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

104.75

DECIBEL RATING (DBA)

64

INVERTER

DC

LINE SET LENGTH

25

MAX LINESET LENGTH (FT)

221.4

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

(3/8 X4) (1/2 X1)

COMPRESSOR MOTOR TYPE

Rotary

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

UL LISTED

Yes

ETL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited Lifetime*

BASE PARTS WARRANTY

5

BASE COMPRESSOR WARRANTY

7

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

16.14

NET HEIGHT (IN)

31.89

NET WIDTH (IN)

37.24

NET WEIGHT (LBS)

169.24

GROSS DEPTH (IN)

19.69

GROSS HEIGHT (IN)

34.84

GROSS WIDTH (IN)

42.91

GROSS WEIGHT (LBS)

181.88
