BRAND NAME

MRCOOL

SERIES

DIY 5th gen Multi-Zone Mini-splits

MODEL

DIY-MULTI6-48HP230D-O

GTIN

00840255587471

UPC

840255587471

SHORT DESCRIPTION

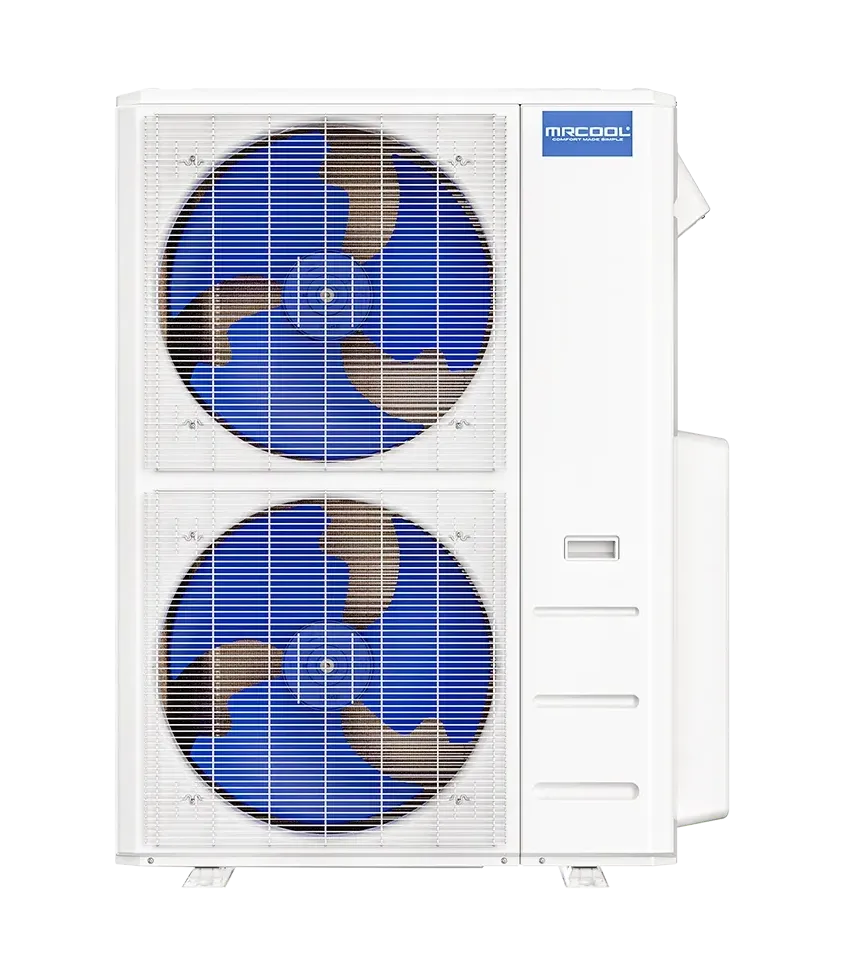

MRCOOL® 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v

LONG DESCRIPTION

We’re excited to introduce our new 5th Generation MRCOOL® DIY® 48k BTU Multi-Zone Ductless Mini-Split Condenser, because it’s better than its predecessor in nearly every way. You won’t need the services of an HVAC professional when you’re setting this unit up, because you can do it yourself, which saves lots of time and money! This condenser enables you to heat and cool up to 6 separate spaces equalling up to 2,000 sq. ft., meaning you’d be able to cover an entire home in the completely efficient comfort of a single DIY® system. You can install this system on your own because our innovative, patented pre-charged Quick Connect® line sets allow you to skip the lengthy and complicated process of evacuating and charging the system. These line sets are filled with R-454B refrigerant, a much more ecological and proficient upgrade from the previous refrigerant used in the last generation. This switch helps the system achieve impressive efficiency levels, like 21.8 SEER2 and an HSPF2-4 of 10. These line sets are sold separately. Once you install your system, you’ll be able to explore the variety of ways you can customize your comfort. For ultimate control, you can integrate system operations with the SmartHVAC app, available for Apple and Android phones, allowing you the ability to set schedules, manage modes of operation, monitor your systems all with the touch of a button. The app even enables you to set up integration with Amazon Alexa and Google Home, meaning you won’t have to move a finger to make your home more comfortable than ever. We pride ourselves on having one of the best warranties in the industry on this unit! Once you install your condenser, you’re entitled to a 5 year parts warranty, a 7 year compressor warranty, and, if you subscribe to the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. The MRCOOL® DIY® is the right choice if you want fast, efficient comfort that won’t let you down!

FEATURE LIST

• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

SEER2

21.8

EER2

12

HSPF2-4

10

HSPF2-5

7.8

TONNAGE

4

COOLING CAPACITY (BTU)

43000

HEATING CAPACITY (BTU)

48000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

45

MIN CIRCUIT AMPACITY (A)

40

COLOR

White

ZONE CAPACITY

6

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

148.15

DECIBEL RATING (DBA)

64

INVERTER

DC

LINE SET LENGTH

25

MAX LINESET LENGTH (FT)

221.4

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

(3/8 X4) (1/2 X2)

COMPRESSOR MOTOR TYPE

Rotary

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

UL LISTED

Yes

ETL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited Lifetime*

BASE PARTS WARRANTY

5

BASE COMPRESSOR WARRANTY

7

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

16.34

NET HEIGHT (IN)

52.48

NET WIDTH (IN)

37.48

NET WEIGHT (LBS)

223.77

GROSS DEPTH (IN)

19.49

GROSS HEIGHT (IN)

58.27

GROSS WIDTH (IN)

43.11

GROSS WEIGHT (LBS)

256.39

IMAGE 1

Open

IMAGE 2

Open

IMAGE 3

Open

IMAGE 4

Open

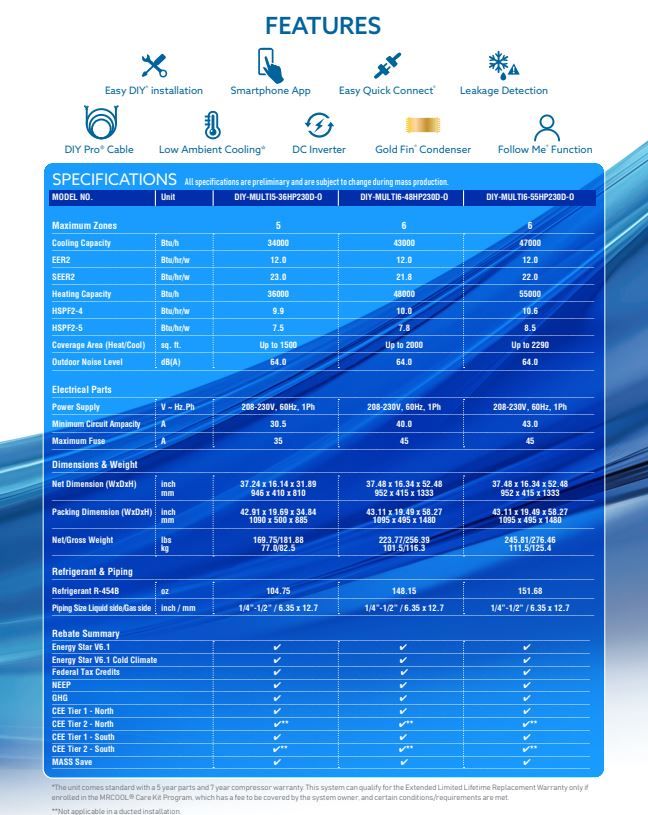

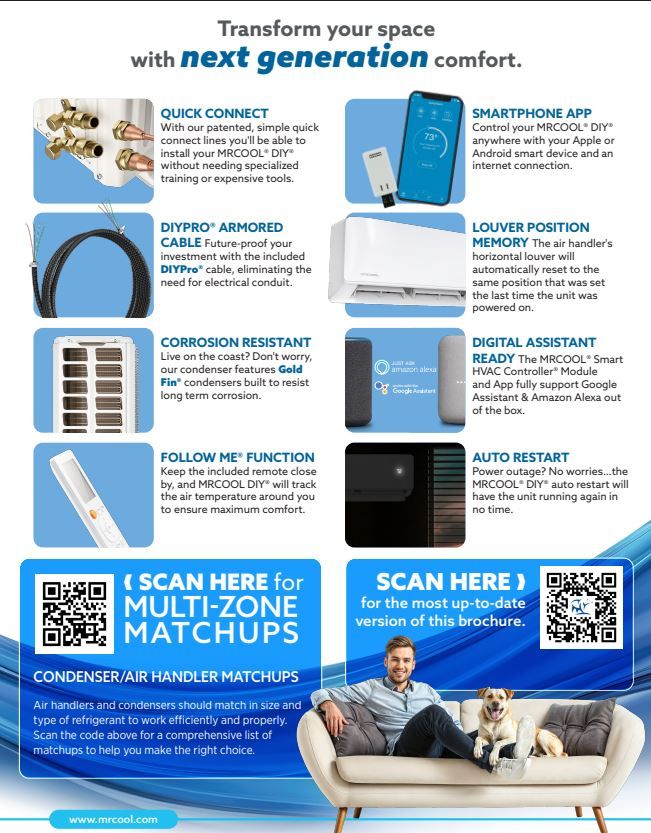

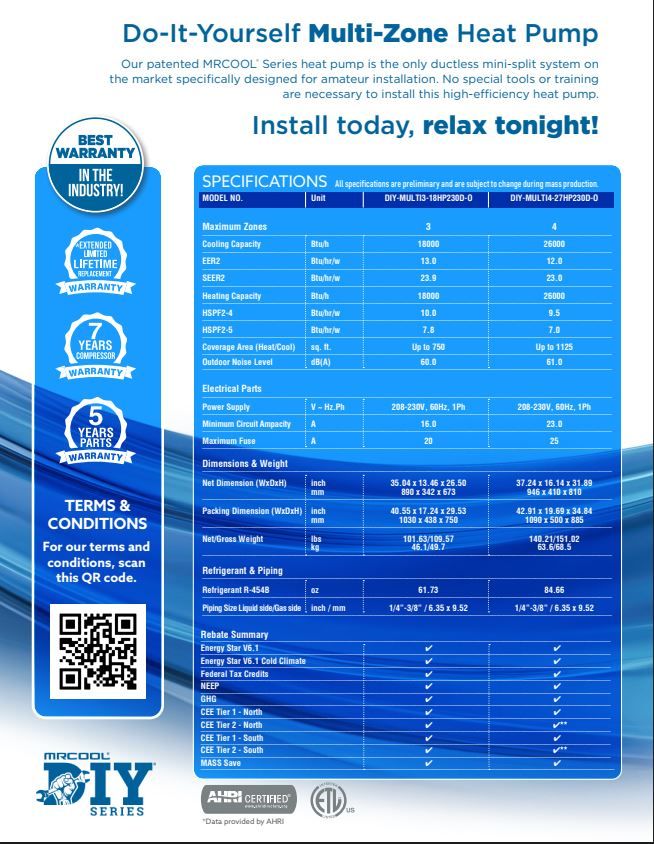

BROCHURE
