BRAND NAME

MRCOOL

SERIES

DIY 5th gen Multi-Zone Mini-splits

MODEL

DIY-MULTI6-55HP230D-O

GTIN

00840255587488

UPC

840255587488

SHORT DESCRIPTION

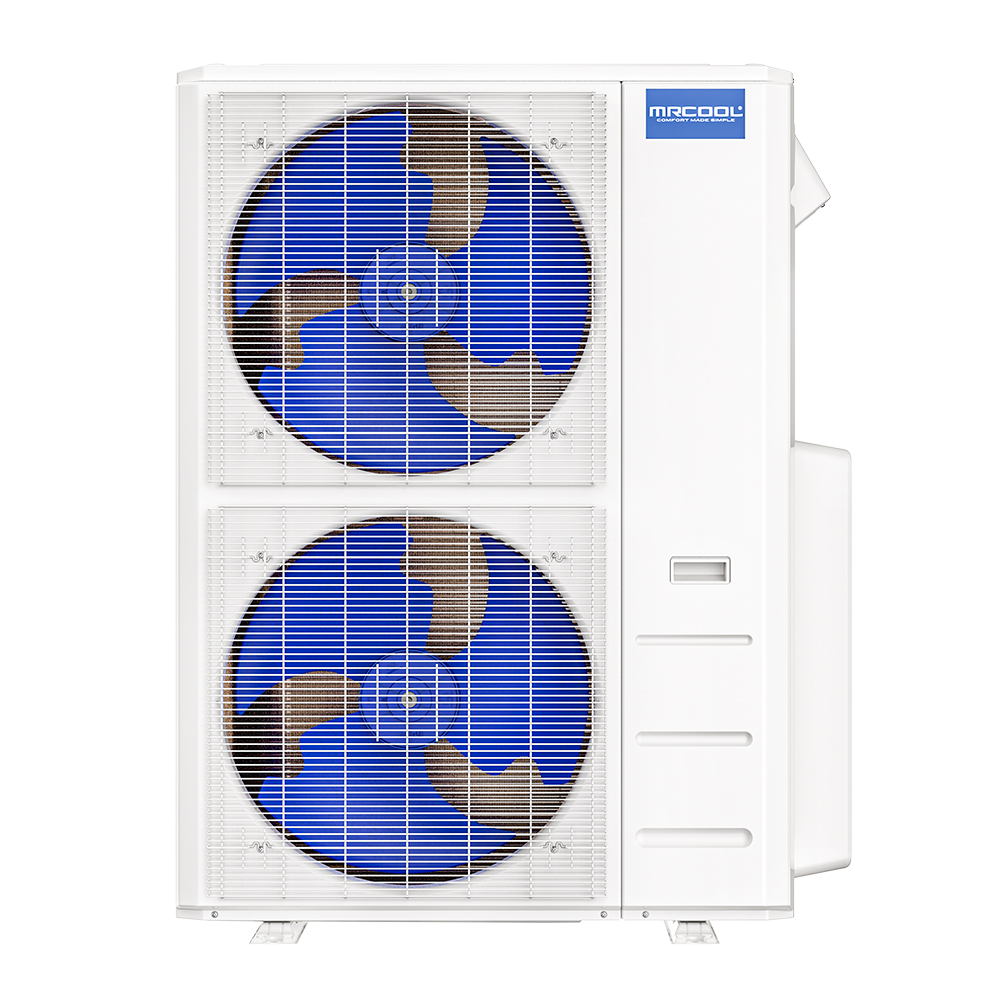

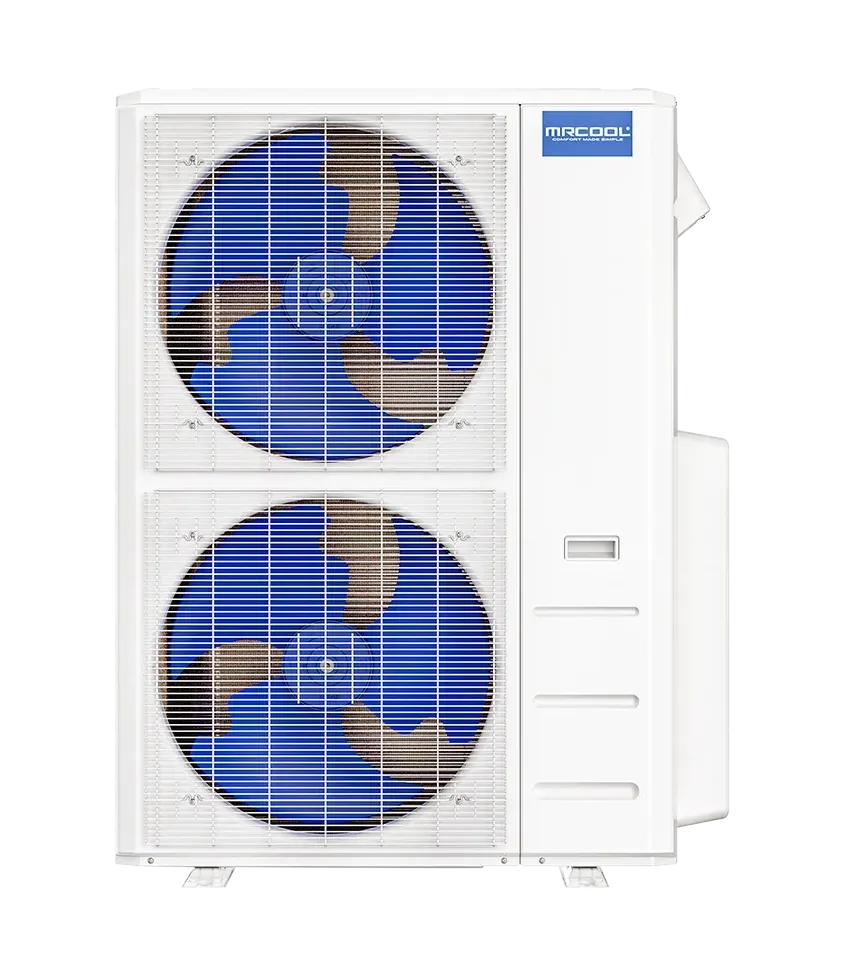

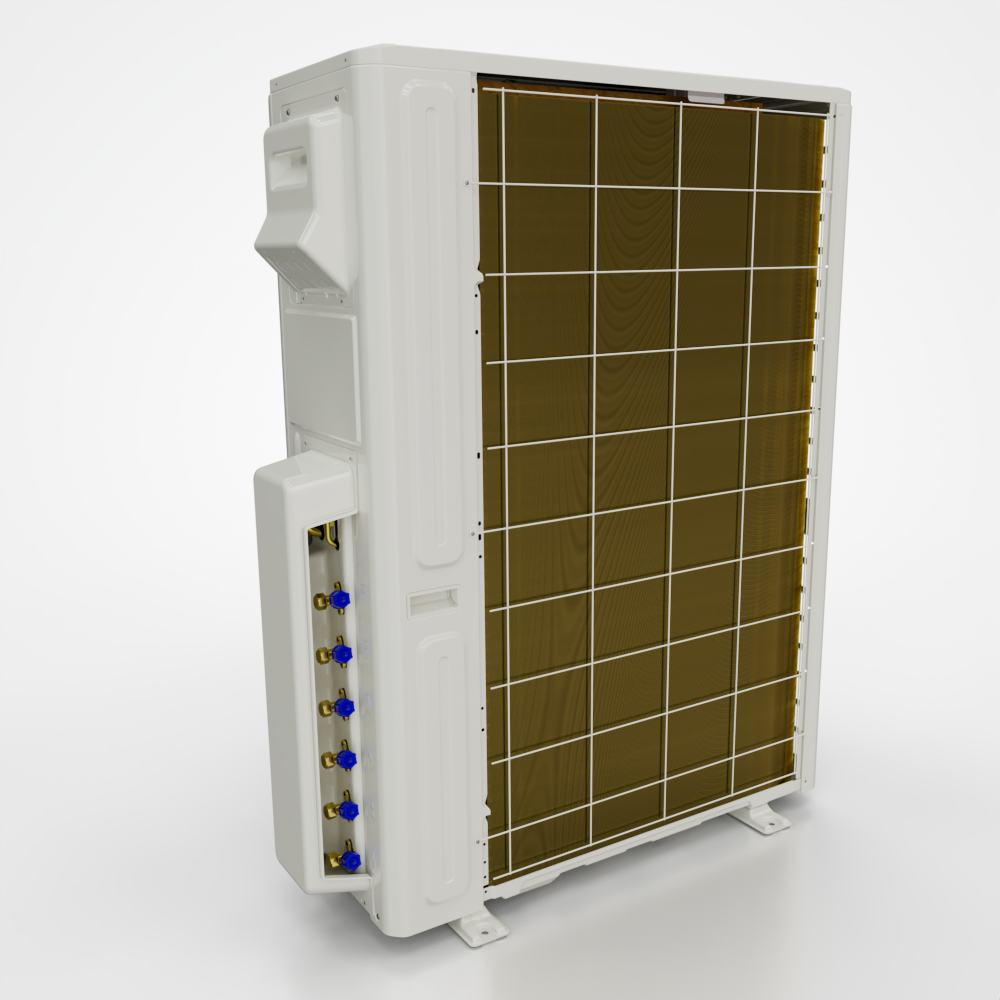

MRCOOL® 55k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v

LONG DESCRIPTION

Our new 5th Generation MRCOOL® DIY® 55k BTU Multi-Zone Ductless Mini-Split Condenser is one of the most efficient and innovative units in the industry, and we’re excited to finally share it with you! On top of saving time and money because you won’t need an HVAC professional, this system will give you a good sense of accomplishment because you’ll have installed it yourself! The whole family will be able to enjoy the comfort of this condenser, because it can heat and cool up to 6 different spaces that equal up to 2290 sq. ft., giving you the ability to heat and cool an entire home to your exact specifications using a single MRCOOL® system. The system’s patented pre-charged Quick-Connect® line sets essentially fast-forward the installation of this system, enabling you to skip the evacuation and charging steps and simplifying the entire process. We utilize new R-454B refrigerant in these line sets, which is a much more environmentally friendly and efficient choice. Features like these assist this unit in achieving its impressive SEER2 of 22, and its HSPF2-4 of 10.6, both of which signify that this system will help you save money throughout the entire time you use it. These line sets are sold separately. Once you install this condenser, you’ll be met with a variety of features to help you control your comfort. One of these features is the Smart HVAC app, available on Apple and Android, that allows you to operate your system from the convenience of your phone. Set schedules, manage different modes, monitor energy consumption, and more all without having to leave the couch! You can also set up voice control through Amazon Alexa or Google Home, meaning you can control your comfort without moving a finger. This system ensures you’ll be enjoying ultimate convenience and superior comfort. The warranty for this unit is one of the best in the industry, and we’re proud to have your back. You can enjoy the peace of mind of a 5 year parts warranty, a 7 year compressor warranty, and, once you enroll in the MRCOOL® Care Program, a Limited Lifetime Replacement warranty. If you need perfect comfort but don’t want to break the bank, this MRCOOL® DIY® condenser is your answer!

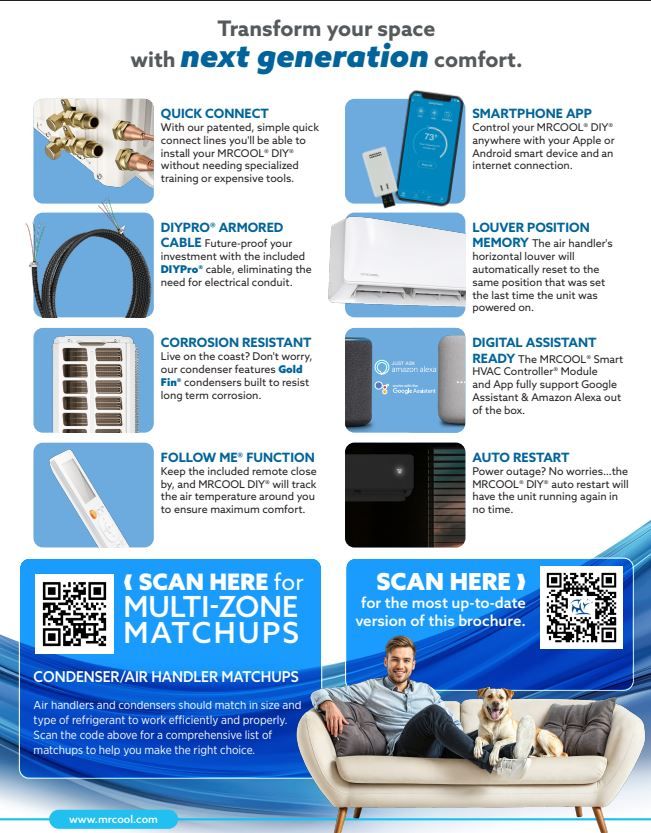

FEATURE LIST

• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

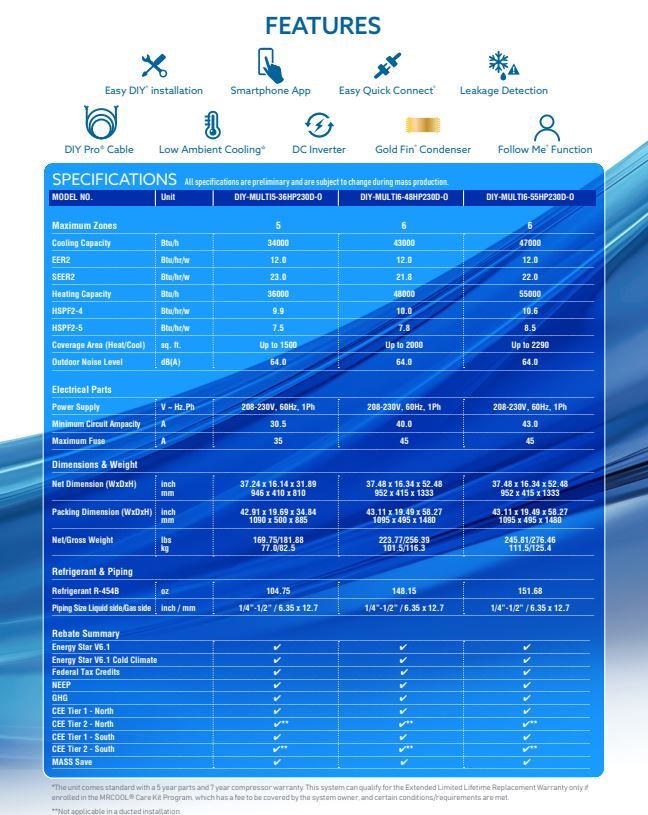

SEER2

22

EER2

12

HSPF2-4

10.6

HSPF2-5

8.5

TONNAGE

4.6

COOLING CAPACITY (BTU)

47000

HEATING CAPACITY (BTU)

55000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

45

MIN CIRCUIT AMPACITY (A)

43

COLOR

White

ZONE CAPACITY

6

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

151.68

DECIBEL RATING (DBA)

64

INVERTER

DC

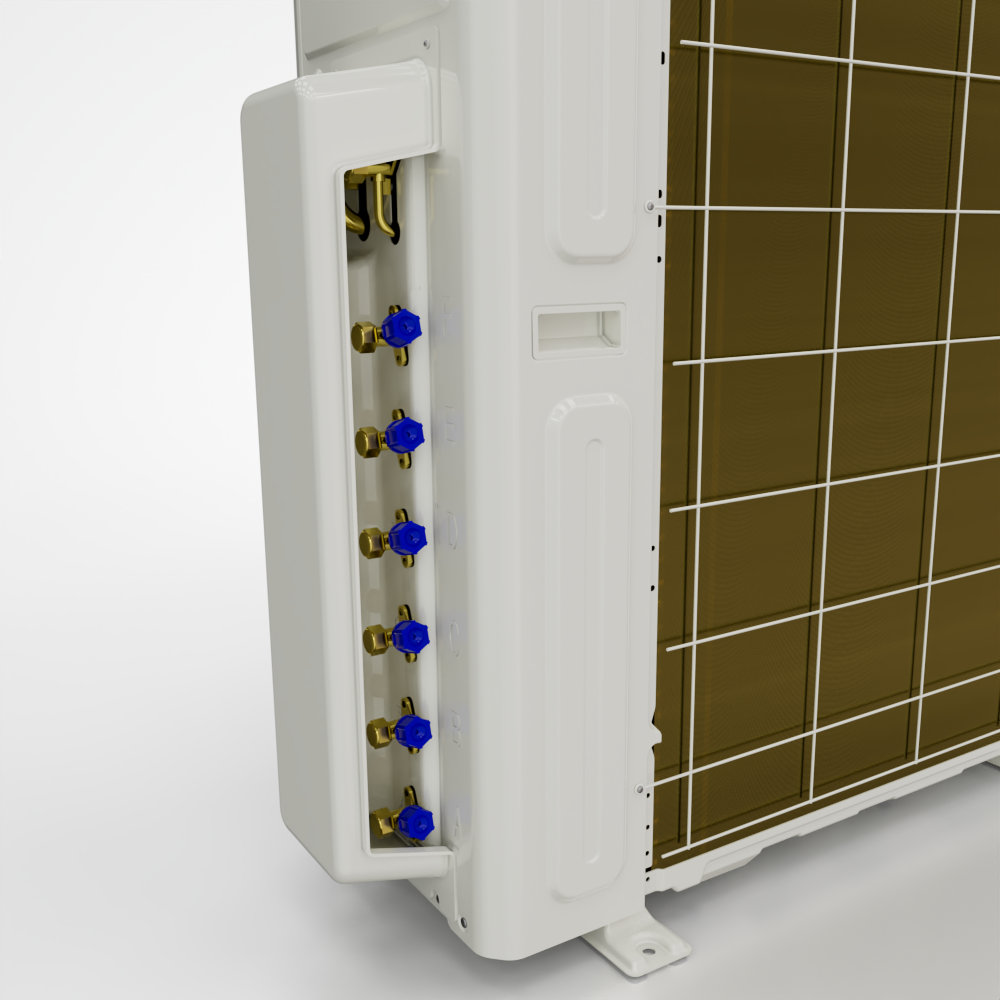

LINE SET LENGTH

25

MAX LINESET LENGTH (FT)

221.4

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

(3/8 X4) (1/2 X2)

COMPRESSOR MOTOR TYPE

Rotary

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

UL LISTED

Yes

ETL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited Lifetime*

BASE PARTS WARRANTY

5

BASE COMPRESSOR WARRANTY

7

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

16.34

NET HEIGHT (IN)

52.48

NET WIDTH (IN)

37.48

NET WEIGHT (LBS)

245.81

GROSS DEPTH (IN)

19.49

GROSS HEIGHT (IN)

58.27

GROSS WIDTH (IN)

43.11

GROSS WEIGHT (LBS)

267.46
