BRAND NAME

MRCOOL

SERIES

Olympus Hyper Heat

MODEL

O-HH-12-HP-230E

GTIN

810512031870

UPC

810512031870

UNIT TYPE

Mini-Split

SHORT DESCRIPTION

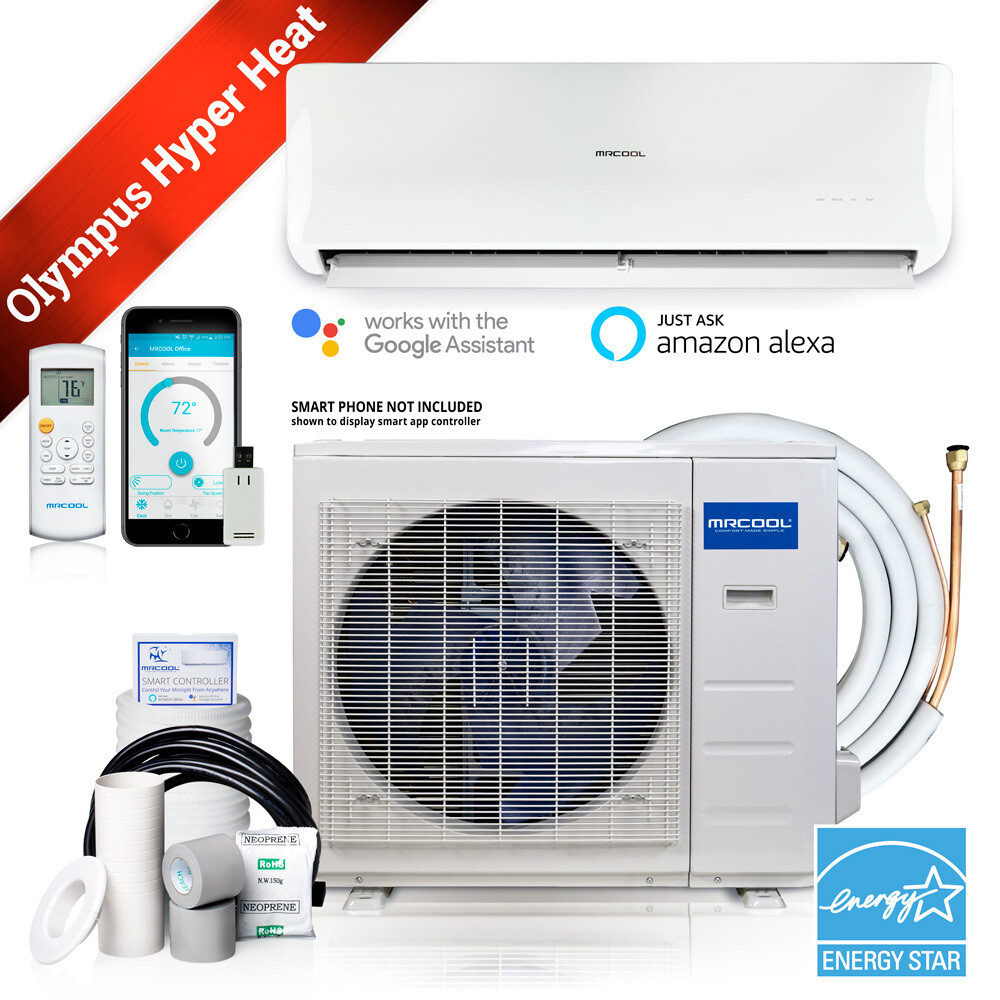

Olympus Hyper Heat 12,000 BTU 1 Ton Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz

LONG DESCRIPTION

This system is meant to be installed by a HVAC technician. The MRCOOL Olympus Hyper Heat Series ductless mini-split heat pump is the air comfort system you need to ensure your home stays cost effective, and comfortable all year. This system uses hyper-heat technology to ensure efficient and effective heating performance when outdoor temperatures become bitterly cold. This high quality ductless heat pump is energy efficient, packed with great features, and priced to meet most household budgets. If you need targeted air comfort for a single zone in your home or need more general air conditioning, a MRCOOL Olympus Hyper Heat Series ductless heat pump should be exactly what you've been searching for. After all, shouldn't your home feel legendary. The MRCOOL Olympus Hyper Heat now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.

BULLET 1

Installation by a licensed professional required where applicable

BULLET 2

7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional

BULLET 3

High efficient 22.5 SEER 12 HSPF performance

BULLET 4

R-410A environmentally friendly refrigerant

BULLET 5

install kit includes: copper tubing, control wire, 6 ft. drain hose, wall sleeve

BULLET 6

Energy Star certified: estimated national average annual operating cooling cost is 67 dollars based on AHRI certificate #204783916

BULLET 7

Inverter variable speed compressor

BULLET 8

The new Olympus Hyper Heat systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.

BULLET 9

Includes features such as timer mode, auto swing, sleep mode, turbo mode, auto restart, refrigerant leakage detection, and more

SEER

22.5

EER

13

HSPF

12

CFM

418/324/247

TONNAGE

1

COOLING CAPACITY

12000 BTU

HEATING CAPACITY

11800 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MAX FUSE BREAKER

15 A

MIN CIRCUIT AMPACITY

9 AMP

MOUNT TYPE

Wall

COLOR

White

COLOR FAMILY

White

MAX COVERAGE AREA

500 sq ft

ZONE CAPACITY

1

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME

52.9 oz

DECIBEL RATING

24.5-43 dBA

DECIBEL RATING LOW

24.5 dBA

DECIBEL RATING HIGH

43 dBA

AIR FLOW DIRECTION

4-way

NUMBER OF SPEEDS

4(Variable)

OSCILLATION

Yes

INVERTER

Yes

MIN AMBIENT HEAT

5 F Degrees

LINE SET LENGTH

16ft or 25

LIQUID LINE FITTING

3/8 in

LIQUID LINE SIZE

1/4 in

SUCTION LINE FITTING

5/8 in

SUCTION LINE SIZE

1/2 in

CONTROL TYPE

LED

FILTER TYPE

Washable

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

LOW VOLTAGE COMPENSATION

No

OVERLOAD PROTECTION

Yes

ADJUSTABLE THERMOSTAT

Yes

FAN ONLY OPTION

Yes

QUIET MODE

Yes

SLEEP MODE

No

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

CSA LISTED

No

ETL LISTED

Yes

ENERGY STAR COMPLIANT

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

5-year Parts/7-year Compressor/1-year Remote

BASE WARRANTY

None

REGISTERED PARTS WARRANTY

5-year

BASE PARTS WARRANTY

None

REGISTERED COMPRESSOR WARRANTY

7-year

BASE COMPRESSOR WARRANTY

None

REGISTERED REMOTE WARRANTY

1-year

BASE REMOTE WARRANTY

None

REGISTERED LABOR WARRANTY

None

BASE LABOR WARRANTY

None

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

No

RESTRICTED STATES

GU, PR, VI

NET WEIGHT

108.06 lbs

GROSS WEIGHT

120.38 lbs

CONDENSER DEPTH

13.11 in

CONDENSER HEIGHT

21.81 in

CONDENSER WIDTH

31.5 in

CONDENSER WEIGHT

88.2 lbs

AIR HANDLER DEPTH

7.8 in

AIR HANDLER HEIGHT

11.02 in

AIR HANDLER WIDTH

32.87 in

AIR HANDLER WEIGHT

19.84 lbs

FREIGHT CLASS

125
