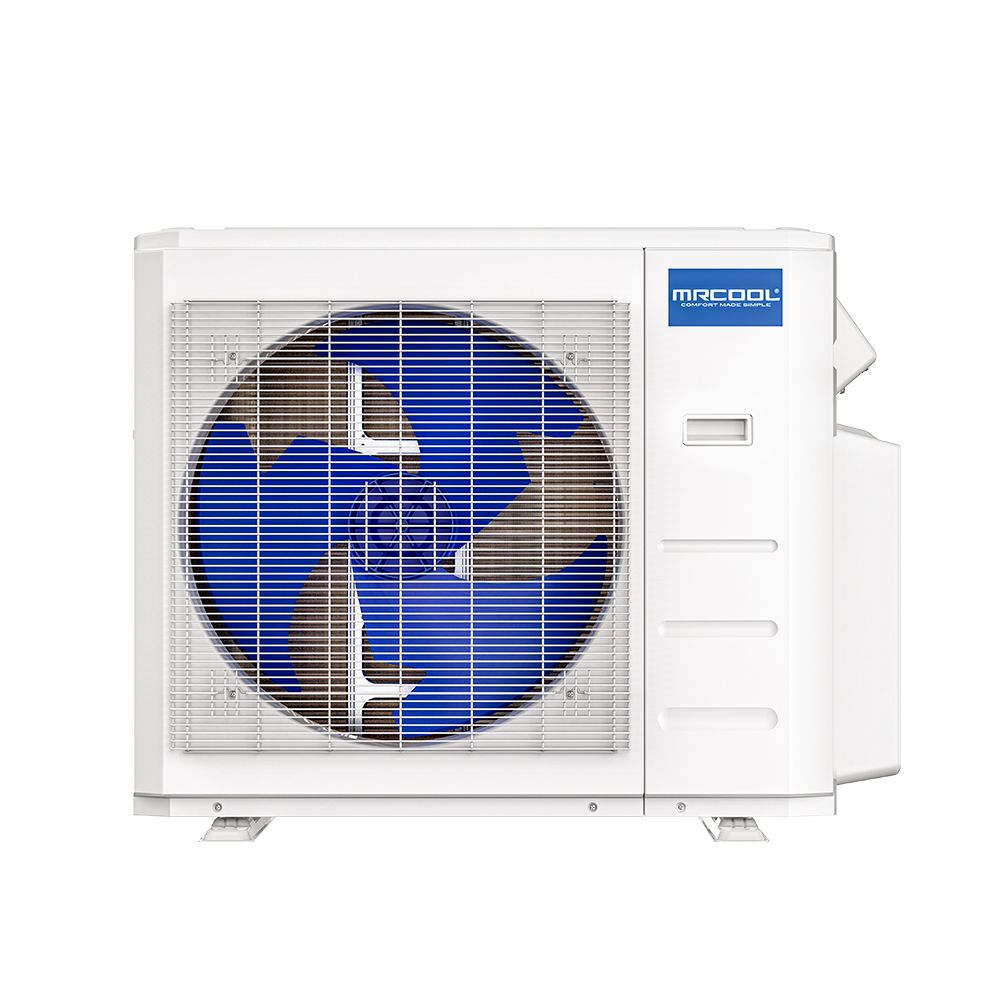

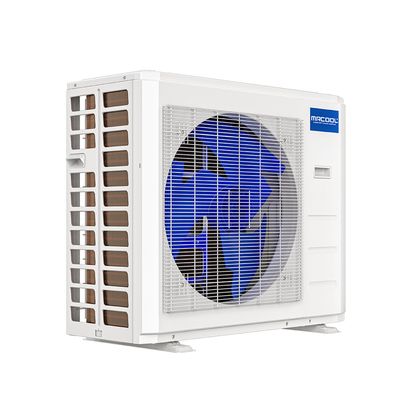

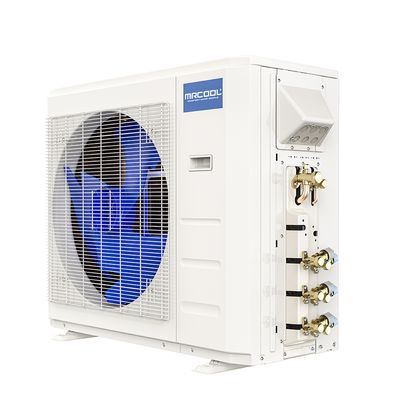

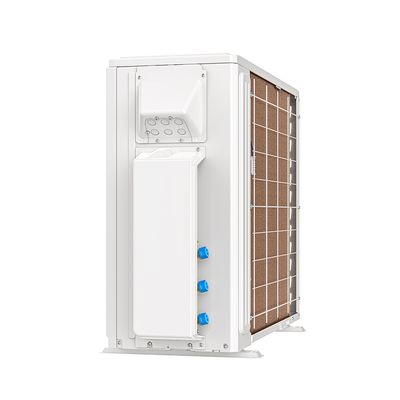

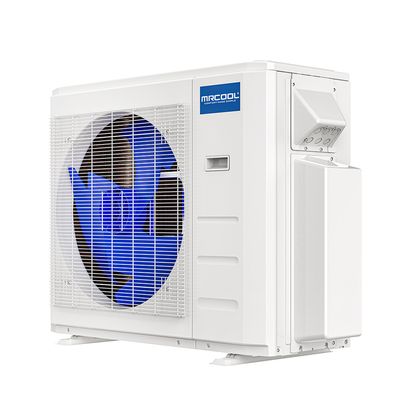

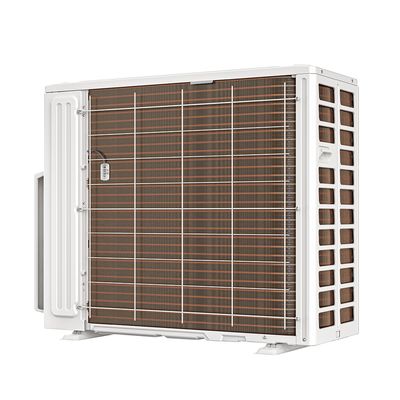

MRCOOL® 18k DIY 5th Generation 3 Zone Multi-Zone Mini-Split Condenser 230v

LONG DESCRIPTION

We are thrilled to announce our new 5th Generation MRCOOL® DIY® 18k BTU Multi-Zone Ductless Mini Split Condenser, which is the best and most convenient way to get comfortable. You won’t need the services of an HVAC professional to install this unit, because it’s do-it-yourself! Achieving a SEER2 rating of 23.9 and an HSPF2-4 rating of 10, you can rest easy knowing this unit will help you save money as you chill. This condenser can also support up to three air handlers, meaning it can heat and cool three rooms that are a combined 750 square feet in size, making it a perfect option if you have spare bedrooms in need of heating and cooling. What makes this system different is our patented pre-charged Quick Connect® line sets filled with R-454B, an incredibly efficient and eco-friendly refrigerant. This switch from the previous refrigerant makes the system even more efficient and sustainable than before. The design of these innovative line sets allow you to install the system yourself, saving you time and money. These line sets are sold separately. This condenser is more than just a heating and cooling unit. When operating as a system, you will be able to experience total customization with the unit’s wealth of features. For example, you can integrate your system with Amazon Alexa or Google Home through the Smart HVAC app, allowing you to control your system with your voice and monitor its operation with the touch of a button. You can also set schedules, temperature ranges, and mode of operation through the app. The power of comfort is in your hands with this system. In the unlikely event that something happens to the system, we’ve got you covered. The DIY® series comes with one of the best warranties in the industry - a 7 year compressor warranty, a 5 year parts warranty, and a Limited Lifetime Replacement warranty with enrollment in the MRCOOL® Care Program. Give yourself the best comfort with the DIY®.

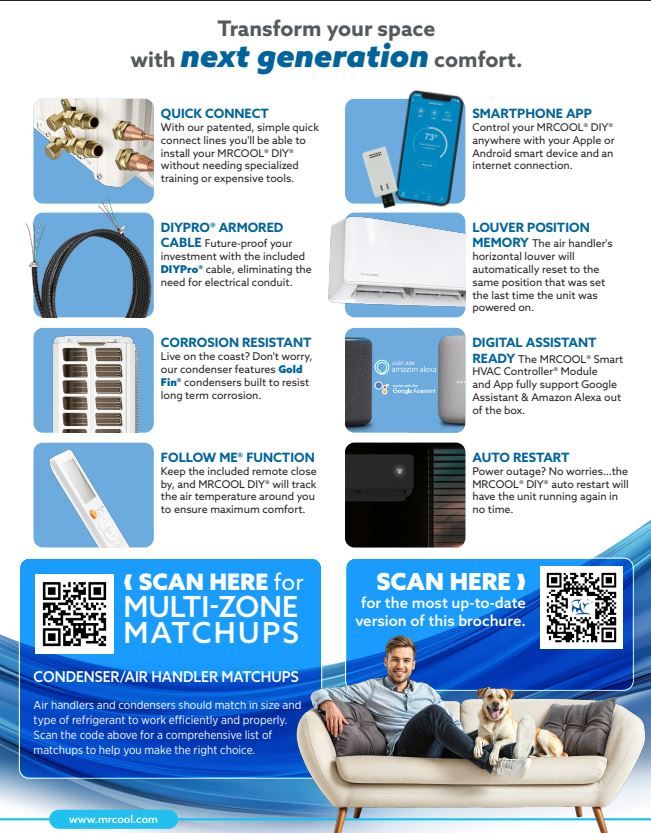

FEATURE LIST

• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

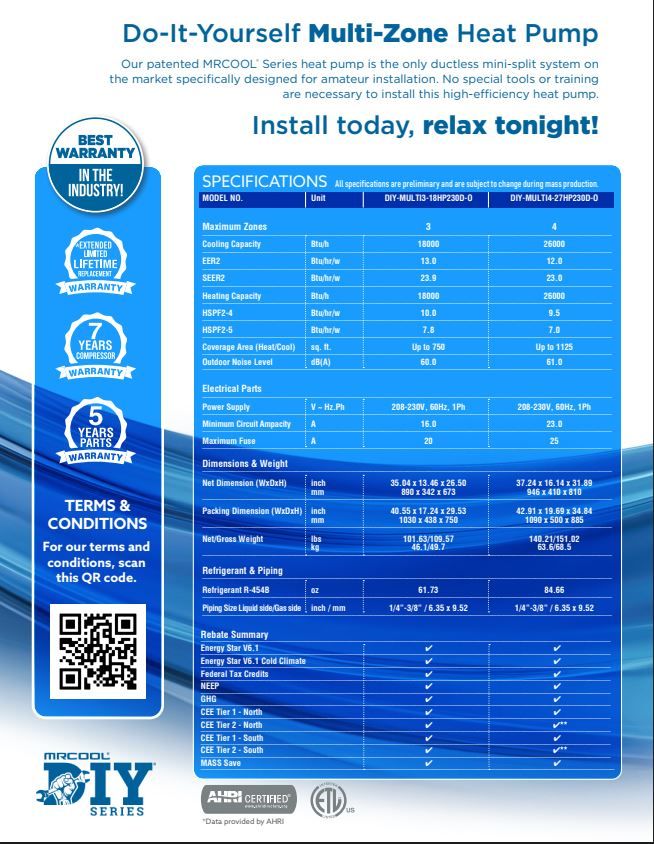

SEER2

23.9

EER2

13

HSPF2-4

10

HSPF2-5

7.8

TONNAGE

1.5

COOLING CAPACITY (BTU)

18000

HEATING CAPACITY (BTU)

18000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

20

MIN CIRCUIT AMPACITY (A)

16

COLOR

White

ZONE CAPACITY

3

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

61.73

DECIBEL RATING (DBA)

60

INVERTER

DC

LINE SET LENGTH

25

MAX LINESET LENGTH (FT)

172.2

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

3/8

COMPRESSOR MOTOR TYPE

Rotary

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

UL LISTED

Yes

ETL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited Lifetime*

BASE PARTS WARRANTY

5

BASE COMPRESSOR WARRANTY

7

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

13.46

NET HEIGHT (IN)

26.5

NET WIDTH (IN)

35.04

NET WEIGHT (LBS)

101.63

GROSS DEPTH (IN)

17.24

GROSS HEIGHT (IN)

29.53

GROSS WIDTH (IN)

40.55

GROSS WEIGHT (LBS)

109.57
