BRAND NAME

MRCOOL

SERIES

DIY 5th gen Multi-Zone Mini-splits

MODEL

DIY-09-HP-WMAH-230D25-O

GTIN

00840255587020

UPC

840255587020

SHORT DESCRIPTION

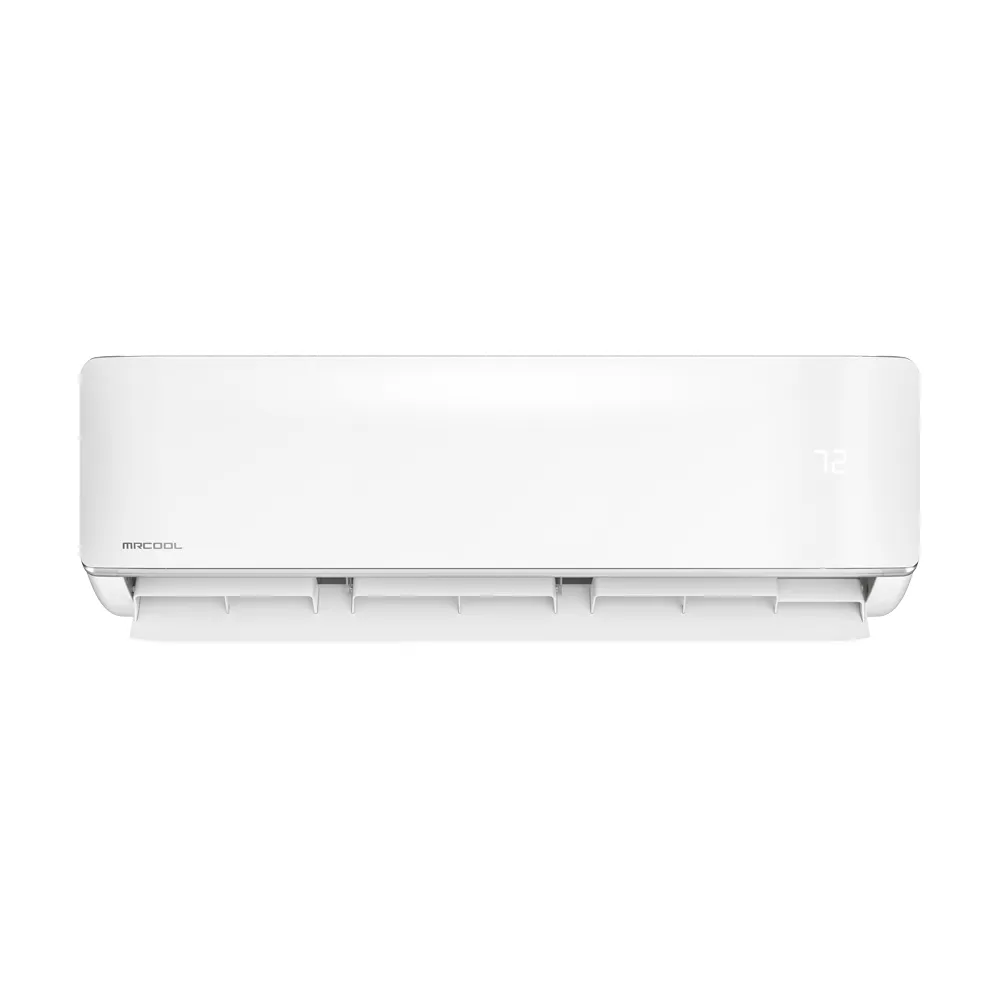

MRCOOL® 9k DIY 5th Generation Mini-Split Air Handler 230v

LONG DESCRIPTION

The 5th Generation MRCOOL® DIY® 9K BTU 22.5 SEER Ductless Mini-Split Heat Pump is a highly efficient and powerful solution for heating and cooling areas up to 400 sq. ft. Designed specifically for easy DIY installation, this system removes the need for specialized tools or professional help, allowing for a quick, hassle-free, and budget-friendly setup. One of its most convenient features is the pre-charged 25-foot DIY® QuickConnect® line set, which comes filled with R-454B refrigerant. This line set is sold separately. This eliminates the need for vacuuming, reducing both installation time and labor costs. Additionally, the DIYPRO® cable replaces the need for electrical conduit, enhancing durability and protection against outdoor elements and wildlife. With multiple control options, adjusting your system is effortless. You can operate it using the wireless remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. The Follow Me function enhances comfort by adjusting airflow based on the remote’s location, ensuring even temperature distribution. Dry Mode also helps regulate humidity, keeping indoor conditions comfortable. Built for long-term durability, the Gold Fin® Condenser offers superior corrosion resistance, making it ideal for coastal environments. Supported by industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL® DIY® system delivers reliable, year-round climate control with innovative features and easy installation.

FEATURE LIST

• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MOUNT TYPE

Wall

COLOR

White

MAX COVERAGE AREA

400 sqft

OSCILLATION

Yes

FILTER TYPE

Reusable

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

ETL LISTED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited Lifetime*

BASE PARTS WARRANTY

5

BASE COMPRESSOR WARRANTY

7

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

7.44

NET HEIGHT (IN)

11.69

NET WIDTH (IN)

31.57

NET WEIGHT (LBS)

24.47

GROSS DEPTH (IN)

16.34

GROSS HEIGHT (IN)

14.37

GROSS WIDTH (IN)

36.02

GROSS WEIGHT (LBS)

35.05
