BRAND NAME

MRCOOL

SERIES

DIY Hyper Heat

MODEL

DIYHH-12-HP-C-230D25-O

GTIN

00840255588102

UPC

840255588102

UNIT TYPE

Mini-Split

EQUIPMENT TYPE

Condenser

SHORT DESCRIPTION

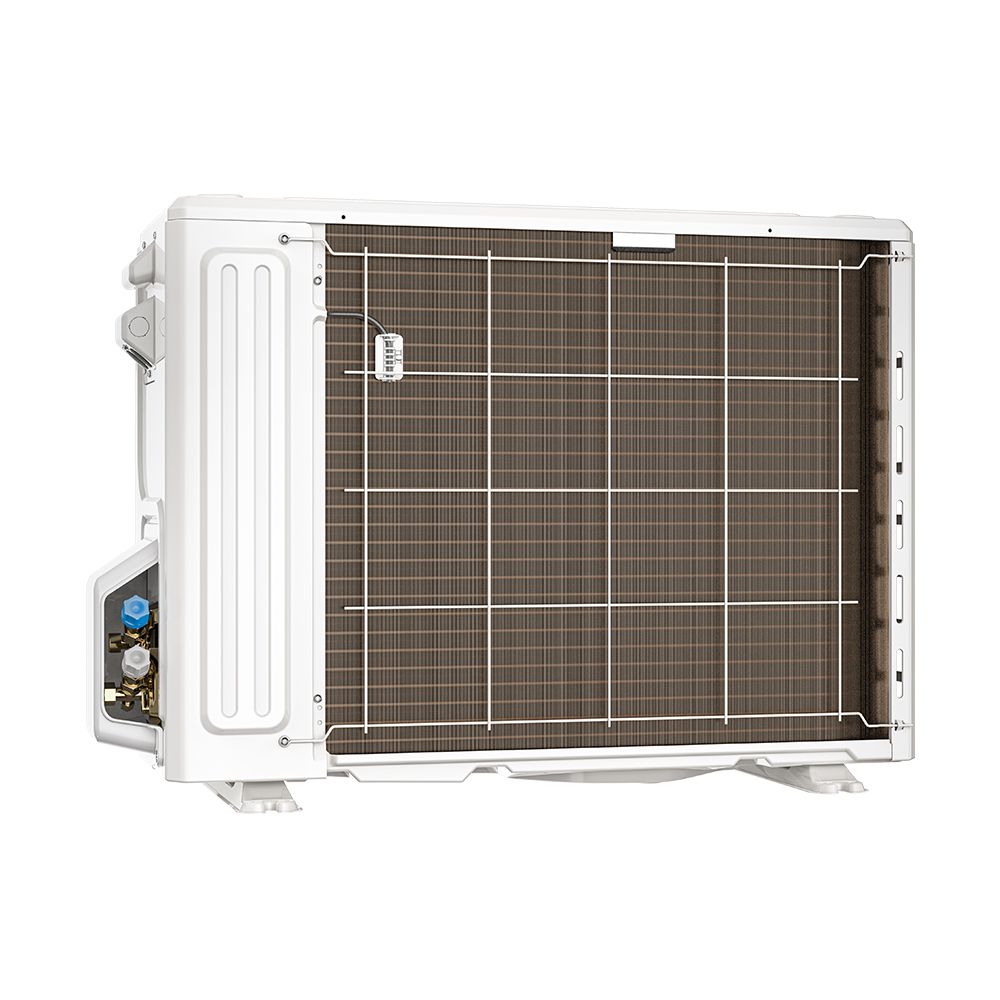

DIY 5th Gen - R454B - 12K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit

LONG DESCRIPTION

The MRCOOL® DIY® 12K BTU 208/230V Hyper Heat 23.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser delivers powerful, high-efficiency climate control with simple do-it-yourself installation—no special tools, training, or professional assistance required. It’s ideal for heating and cooling spaces between 350–550 sq. ft., and is compatible with both our sleek wall-mounted air handlers and the low-profile DIY® OuttaSight® Ceiling Cassette. Installation is fast and straightforward thanks to the 25-foot QuickConnect® line set, filled with environmentally-friendly R-454B refrigerant—eliminating the need for vacuuming or handling refrigerant. The included DIYPRO® cable enhances system protection, replacing traditional electrical conduit to guard against weather, pests, and yardwork damage. Enjoy flexible control with multiple options: the included remote, the SmartHVAC app for iOS and Android devices, or voice control through Amazon Alexa and Google Assistant. The corrosion-resistant Gold Fin® condenser coating is designed for durability, making it ideal for both inland and coastal environments. This system is loaded with smart features, including Auto-Restart to maintain continuity of comfort after power loss, a programmable Timer to correspond to your schedule, and the Sleep function, which increases efficiency while you sleep. For peace of mind, the unit comes standard with a 7-year compressor and 5-year parts warranty with eligibility for the MRCOOL® Care Program. Enjoy dependable, hassle-free comfort year-round with The MRCOOL® DIY® 12K BTU Hyper Heat Single Zone Mini Split Condenser.

WORKS WITH

DIYCASSETTE12HP-230D25-O DIY-12-HP-WMAH-230D25-O

SEER2

23.5

EER2

12.8

HSPF2-4

10

HSPF2-5

8

CFM

1471.5

TONNAGE

1

COOLING CAPACITY (BTU)

12000

HEATING CAPACITY (BTU)

12000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

15

COLOR

White

MAX COVERAGE AREA

550

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

32.1

DECIBEL RATING (DBA)

56.5

INVERTER

Yes

MIN AMBIENT COOL (F)

-22

MIN AMBIENT HEAT (F)

-22

LINESET INCLUDED

Yes

LINE SET LENGTH

25ft

MAX LINESET LENGTH (FT)

75

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

3/8

COMPRESSOR MOTOR TYPE

Rotary

CONDENSER FAN MOTOR RPM

780/680/580

METERING DEVICE

EEV

UL LISTED

Yes

CSA CERTIFIED

Yes

ETL CERTIFIED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

7-Years Compressor, 5-Years Parts

BASE WARRANTY

5-Years Parts

BASE PARTS WARRANTY

5 Years

BASE COMPRESSOR WARRANTY

7 Years

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET DEPTH (IN)

12.99

NET HEIGHT (IN)

21.81

NET WIDTH (IN)

31.69

NET WEIGHT (LBS)

72.31

GROSS DEPTH (IN)

14.57

GROSS HEIGHT (IN)

24.21

GROSS WIDTH (IN)

36.02

GROSS WEIGHT (LBS)

79.59
