BRAND NAME

MRCOOL

SERIES

DIY Hyper Heat

MODEL

DIYHH-18-HP-C-230D25-O

GTIN

00840255588096

UPC

840255588096

UNIT TYPE

Mini-Split

EQUIPMENT TYPE

Condenser

SHORT DESCRIPTION

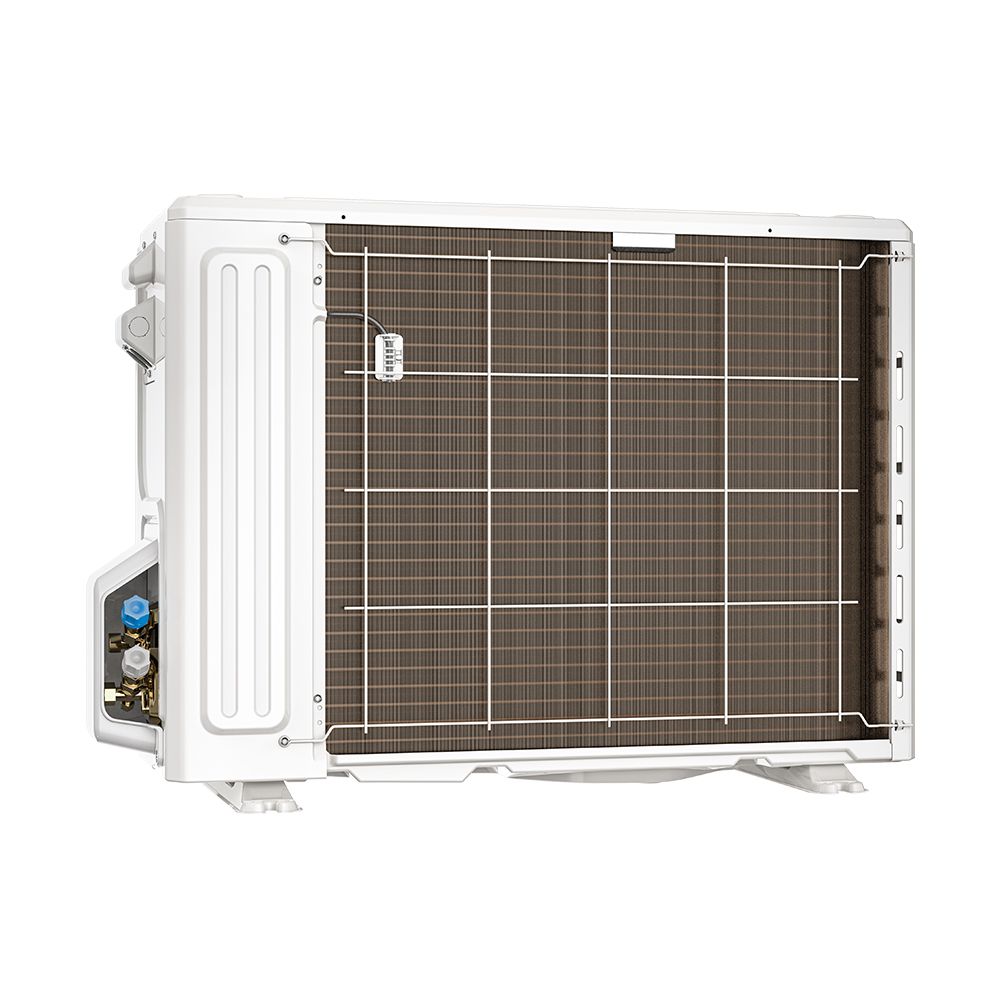

DIY 5th Gen - R454B - 18K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit

LONG DESCRIPTION

Experience year-round comfort with the MRCOOL® DIY® 18k BTU 208/230V Hyper Heat 21.2 SEER Ductless Heat Pump Single Zone Mini Split Condenser—a high-performance solution designed for easy installation without the need for professional tools or experience. Perfect for spaces ranging from 500-800 sq. ft., this system is compatible with both our stylish wall-mounted air handlers and the discreet DIY® OuttaSight® Ceiling Cassette. Installation is quick and hassle-free, thanks to the 25-foot Quick Connect® line set, which comes pre-charged with eco-friendly R-454B refrigerant. No vacuum pump or gauges required. The included DIYPRO® cable adds extra durability, offering protection against outdoor elements, animals, and everyday wear. Control your comfort effortlessly with several convenient options: a handheld remote, the SmartHVAC mobile app for Apple and Android, or hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® condenser coating helps resist corrosion, making it a dependable option even in coastal climates. Advanced features enhance both convenience and efficiency. Auto-Restart resumes unit function after a power outage, Timer allows for customized operation based on your schedule, and Sleep maximizes energy usage while you sleep. For ultimate peace of mind, the MRCOOL® DIY® 18k BTU Hyper Heat Single Zone Mini Split includes a 7-year compressor and 5-year parts warranty with eligibility for the MRCOOL® Care Program for ultimate performance and confidence.

WORKS WITH

DIYCASSETTE18HP-230D25-O DIY-18-HP-WMAH-230D25-O

SEER2

21.2

EER2

12.5

HSPF2-4

11

HSPF2-5

8.5

CFM

1765.8

TONNAGE

1.5

COOLING CAPACITY (BTU)

18000

HEATING CAPACITY (BTU)

18000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

25

MIN CIRCUIT AMPACITY (A)

19

COLOR

White

MAX COVERAGE AREA

800

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

52.21

DECIBEL RATING (DBA)

58

INVERTER

Yes

MIN AMBIENT COOL (F)

-22

MIN AMBIENT HEAT (F)

-22

LINESET INCLUDED

Yes

LINE SET LENGTH

25ft

MAX LINESET LENGTH (FT)

75

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

COMPRESSOR MOTOR TYPE

Rotary

CONDENSER FAN MOTOR RPM

780/700/550

METERING DEVICE

EEV

UL LISTED

Yes

CSA CERTIFIED

Yes

ETL CERTIFIED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

7-Years Compressor, 5-Years Parts

BASE WARRANTY

5-Years Parts

BASE PARTS WARRANTY

5 Years

BASE COMPRESSOR WARRANTY

7 Years

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET DEPTH (IN)

13.46

NET HEIGHT (IN)

26.5

NET WIDTH (IN)

35.04

NET WEIGHT (LBS)

99.87

GROSS DEPTH (IN)

18.11

GROSS HEIGHT (IN)

29.53

GROSS WIDTH (IN)

40.55

GROSS WEIGHT (LBS)

120.15
