BRAND NAME

MRCOOL

SERIES

Universal R-454B

MODEL

UHP18030-O

GTIN

00840255587884

UPC

840255587884

UNIT TYPE

Universal Series Heat Pump

SHORT DESCRIPTION

Universal Series Heat Pump Inverter Condenser

LONG DESCRIPTION

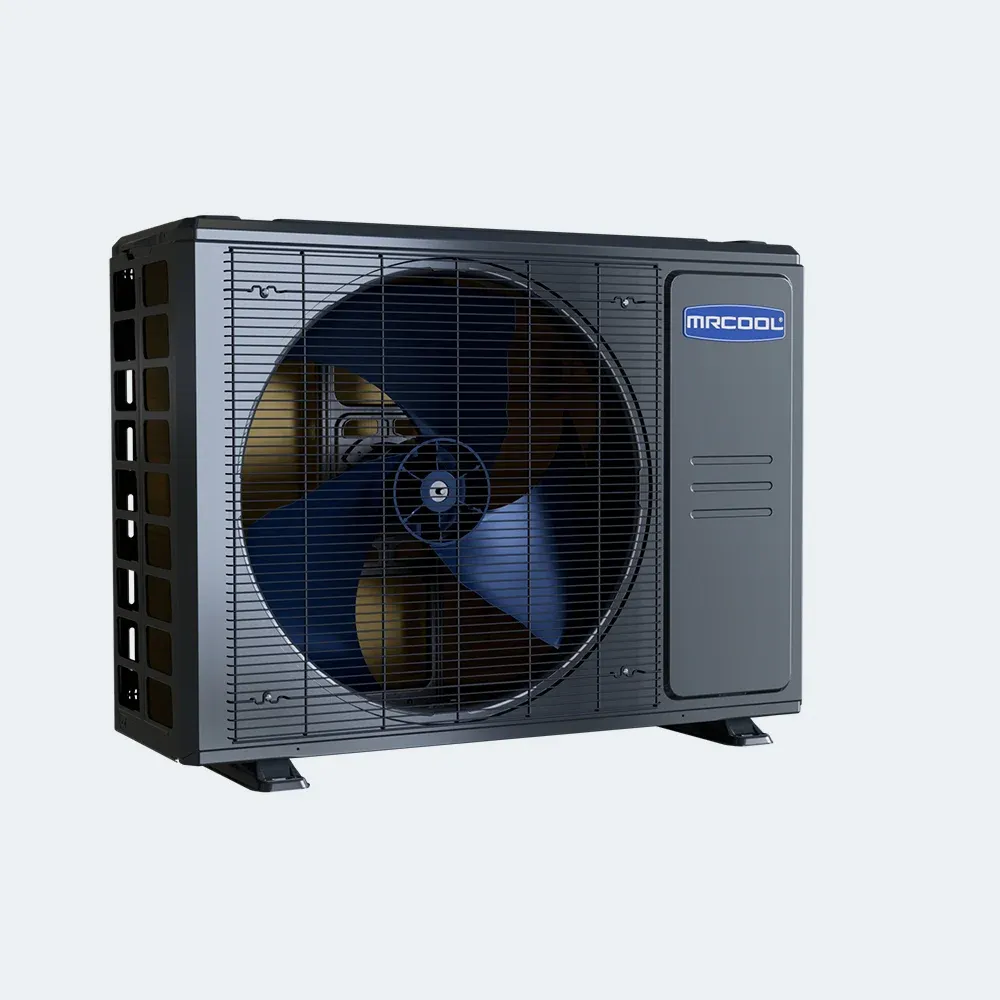

The MRCOOL® Universal® Series 30K DC Inverter Heat Pump Condenser is engineered to provide dependable, energy-efficient comfort in every season. With an impressive 17.2 SEER2 rating, this unit delivers powerful performance while helping to lower energy consumption and reduce monthly utility costs—making it a smart and practical upgrade for modern homeowners. Whether you're replacing an outdated system or installing a new setup, this condenser offers advanced performance in a compact, space-saving design. Its smaller footprint allows for flexible placement in homes with limited outdoor space, patios, or narrow installation areas—without compromising capacity or airflow. Installation is fast and straightforward, especially when paired with the optional MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuum pumps, gauges, or flaring tools, dramatically reducing installation time, complexity, and labor costs. It’s a hassle-free solution for contractors and DIYers alike. At the core of this unit is high-efficiency DC inverter technology. Unlike traditional systems that cycle on and off, the inverter gradually adjusts the compressor speed to match your home’s heating and cooling demands. This leads to more stable temperatures, quieter operation, reduced energy use, and less wear on components—extending the lifespan of the system. The MRCOOL® Universal® Series 30K DC Inverter Heat Pump Condenser is backed by a 10-year parts warranty and a 2-year limited labor warranty, ensuring long-term reliability and peace of mind for your investment.

SEER2

Up to 17.2

EER2

Up to 12

HSPF2-4

10.8

HSPF2-5

8.8

TONNAGE

2.5

COOLING CAPACITY (BTU)

30000

HEATING CAPACITY (BTU)

33000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

30

MIN CIRCUIT AMPACITY (A)

29.5

COLOR

Dark Grey

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

105.82

DECIBEL RATING (DBA)

62

INVERTER

DC

MAX LINESET LENGTH (FT)

164

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

COMPRESSOR MOTOR TYPE

Rotary

CONDENSER FAN MOTOR RPM

950/950/850/750

METERING DEVICE

EXV

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

BASE WARRANTY

10 Year Parts

BASE PARTS WARRANTY

10 Years

BASE LABOR WARRANTY

2 Year

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes
