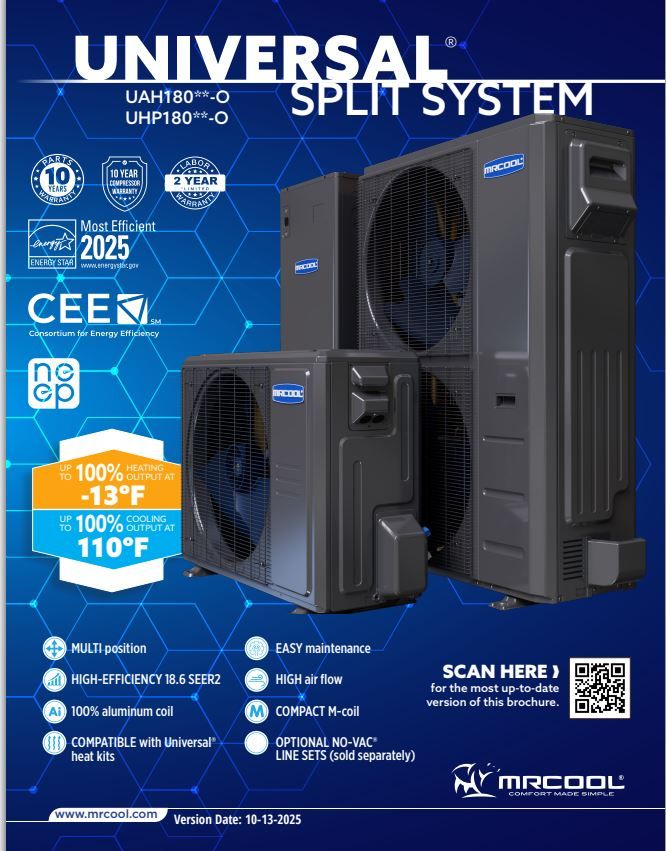

MrCool Universal Series 60,000 BTU Heat Pump Condenser- R454B

Store/Mini Split Systems/MrCool Single Multizone and DIY Systems/Universal
SKU UHP18060-O
$3 098.00
In stock
Product Details

RAND NAME

MRCOOL

SERIES

Universal R-454B

MODEL

UHP18060-O

GTIN

00840255587914

UPC

840255587914

UNIT TYPE

Universal Series Heat Pump

SHORT DESCRIPTION

Universal Series Heat Pump Inverter Condenser

LONG DESCRIPTION

The MRCOOL® Universal® Series 60K DC Inverter Heat Pump Condenser delivers powerful, energy-efficient performance in all climates. Whether you’re facing sub-zero winter temperatures or peak summer heat, this high-capacity unit maintains strong, consistent airflow and dependable comfort throughout the year. With an impressive 17.5 SEER2 efficiency rating, it’s designed to reduce energy usage without sacrificing performance—making it an excellent choice for large residential spaces or demanding HVAC applications. Designed with flexibility and ease in mind, installation is fast and streamlined—especially when paired with the optional MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, cutting installation time, labor costs, and the risk of error. Its compact footprint also allows for flexible placement in areas with limited outdoor clearance, making it ideal for both new builds and retrofit projects. At the core of this system is advanced DC inverter technology, which enables the condenser to adjust its output continuously based on your home’s heating or cooling needs. This eliminates the frequent cycling common with traditional systems, resulting in quieter operation, greater energy efficiency, and less wear on components—helping extend the lifespan of the unit. Whether you’re upgrading from an outdated system or planning a new installation, the MRCOOL® Universal® Series 60K Condenser offers exceptional performance, energy savings, and dependable comfort. It’s backed by a 10-year parts warranty and a 2-year limited labor warranty for added peace of mind.

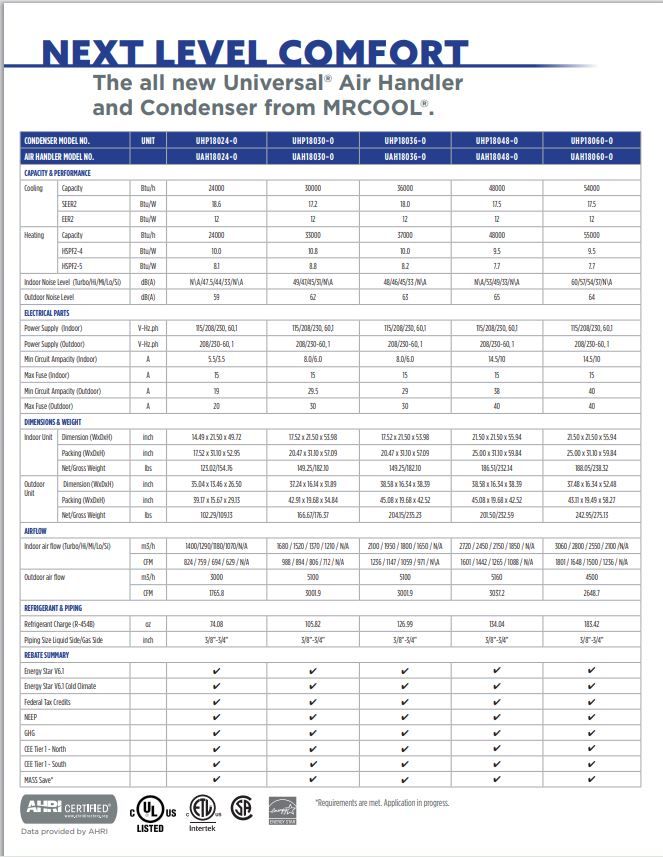

SEER2

Up to 17.5

EER2

Up to 12

HSPF2-4

9.5

HSPF2-5

7.7

TONNAGE

5

COOLING CAPACITY (BTU)

54000

HEATING CAPACITY (BTU)

55000

VOLTAGE (V)

208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

40

MIN CIRCUIT AMPACITY (A)

40

COLOR

Dark Grey

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

183.42

DECIBEL RATING (DBA)

64.5

INVERTER

DC

MAX LINESET LENGTH (FT)

246

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

COMPRESSOR MOTOR TYPE

Twin-Rotary

CONDENSER FAN MOTOR RPM

1000/900/750/650

METERING DEVICE

EXV

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

BASE WARRANTY

10 Year Parts

BASE PARTS WARRANTY

10 Years

BASE LABOR WARRANTY

2 Year

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes
