BRAND NAME

MRCOOL

SERIES

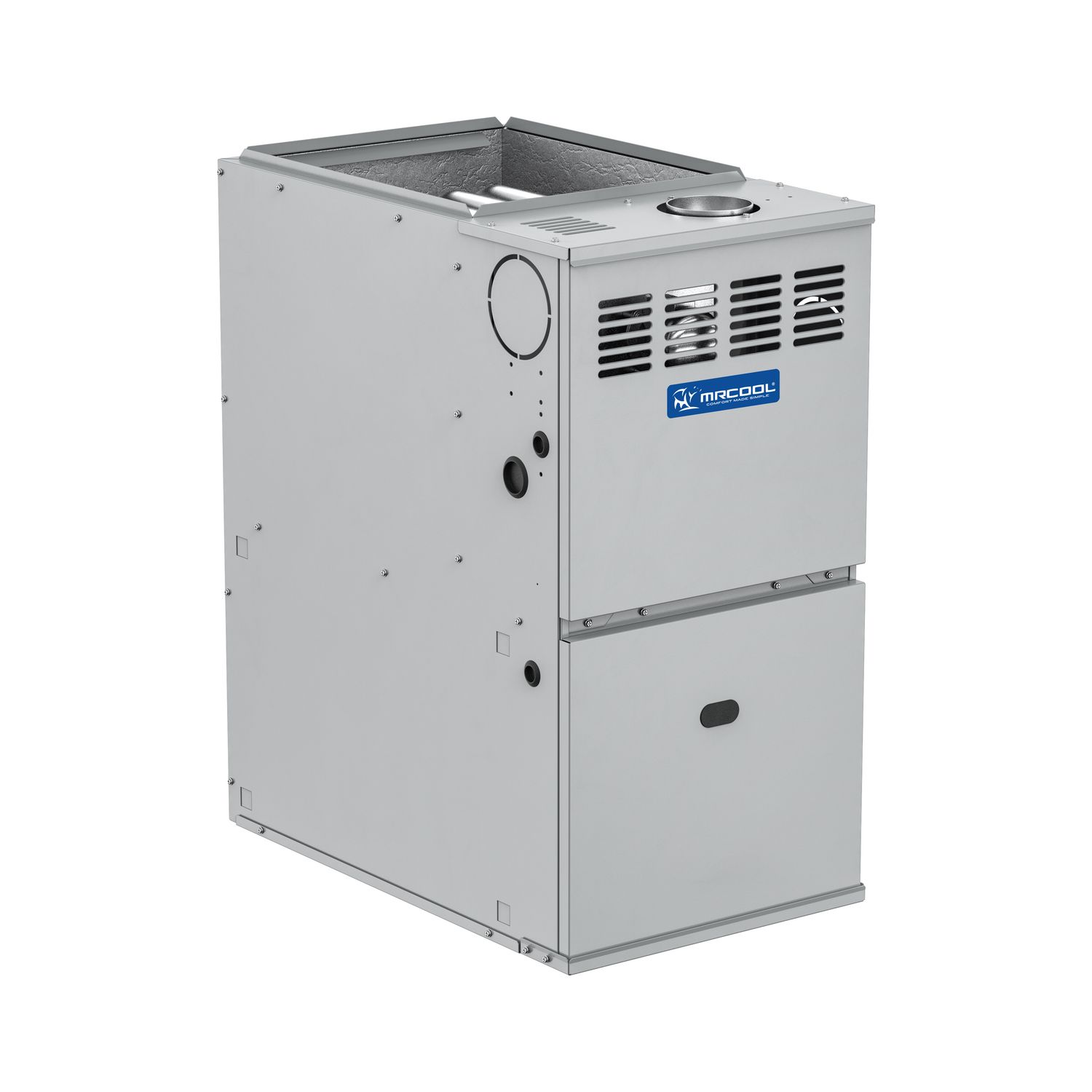

Versapro R-454B 80% AFUE Gas Furnace

MODEL

MGA80SE040A3C

GTIN

00840255588584

UPC

840255588584

UNIT TYPE

Gas Furnace

CONFIGURATION

Multi-Position

SHORT DESCRIPTION

80% AFUE 40K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with A Cabinet

LONG DESCRIPTION

Introducing the MRCOOL® VersaPro® 40K BTU 80% AFUE Gas Furnace, designed to keep your home warm and comfortable throughout the winter. With an 80% AFUE rating, this high-efficiency furnace ensures that most of the fuel consumed is converted into heat, providing cost-effective and reliable warmth while helping to reduce energy expenses. Built for durability and performance, the VersaPro® features a powerful ECM blower motor, which enhances airflow efficiency, allows for easy speed adjustments, and contributes to lower utility costs. Its compact design ensures flexible installation, making it an ideal choice for homes with limited space. Whether for upflow, downflow, or horizontal applications, this furnace offers multi-position installation for maximum adaptability. Additionally, it features convenient left or right gas and electric service connections, and with an optional LP conversion kit, it can easily switch from natural gas to propane. This furnace is compatible with a wide range of 24V thermostats, allowing for seamless control. For added peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty when registered within 90 days of installation. Even without registration, it includes a 5-year parts warranty and a 20-year heat exchanger warranty, ensuring long-term reliability and home comfort.

WORKS WITH

R-410A & R-454B Refrigerants

FEATURE LIST

• Filter Size:
   Side Return: 16x25x1
   Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
• Durable Build & Finish
• Multi-Position Application
• Two-Stage DC motor
• Quiet Operation
• Superior Performance
• Durable Build & Finish
• Optional LP Kit
• Multi-Position Application
• 80% AFUE
• Two Stage
• Energy Efficient
• Compatible with R454b Refrigerant

AFUE

80

CFM

1150

FUEL TYPE

Natural/Propane Gas

BTU INPUT

40000

BTU OUTPUT

32000

VOLTAGE (V)

115

PHASE

1

CYCLE

60

STAGE

Single

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

8

FULL LOAD

8A

NUMBER OF SPEEDS

5

NUMBER OF BURNERS

3

GAS CONNECTION SIZE

3/4in

BLOWER MOTOR TYPE

ECM

BLOWER MOTOR HP

1/2

BLOWER MOTOR SPEEDS

5

BLOWER MOTOR RPM

1050

HEAT EXCHANGER TYPE

Aluminized tubular steel

IGNITION TYPE

Hot Surface

LP KIT INCLUDED

Yes

LP KIT AVAILABLE

Yes

UL LISTED

Yes

ETL LISTED

Yes

REGISTERED PARTS WARRANTY

10 Years

BASE PARTS WARRANTY

5 Years

REGISTERED HEAT EXCHANGER WARRANTY

Lifetime*

BASE HEAT EXCHANGER WARRANTY

20 Years

CONTAINS ELECTRONICS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

28.5

NET HEIGHT (IN)

33.75

NET WIDTH (IN)

14.5

NET WEIGHT (LBS)

108

GROSS DEPTH (IN)

31.02

GROSS HEIGHT (IN)

41

GROSS WIDTH (IN)

17

GROSS WEIGHT (LBS)

132
