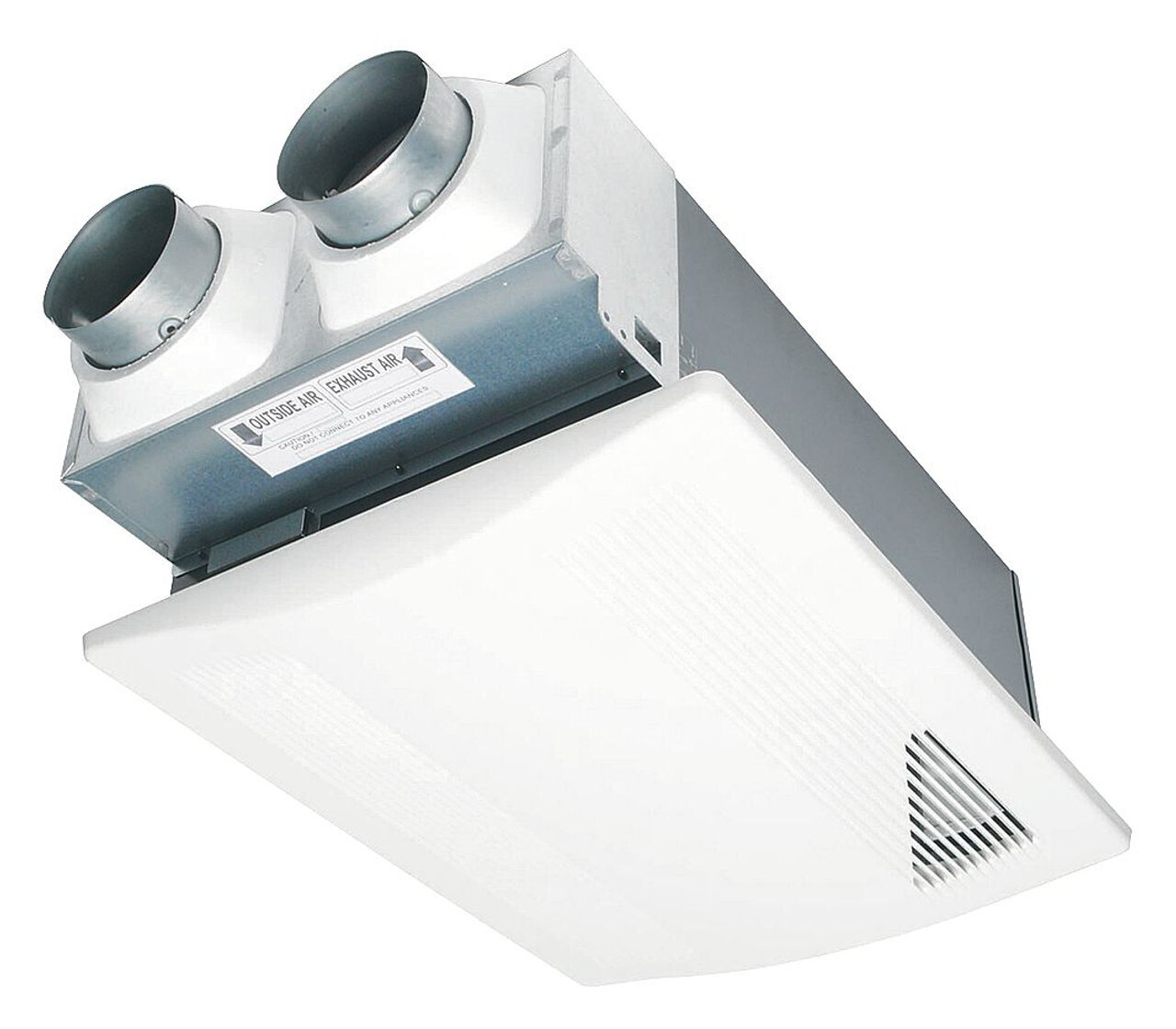

Panasonic WhisperComfort Spot ERV Panasonic

Name: Panasonic WhisperComfort Spot ERV Panasonic
SKU: FV-04VE1
Price: 519.0 USD
Availability: InStock

SKU FV-04VE1

$519.00

In stock

Product Details

Static Pressure (in inches w.g.) 0.1
Air Volume (CFM) 40 @ 0.1 static pressure
20 @ 0.1 static pressure
10 @ 0.1 static pressure
Air Volume Supply (CFM) 30 @ 0.1 statistic pressure
20 @ 0.1 statistic pressure
10 @ 0.1 statistic pressure
Noise (sones) 0.8 @ 40 CFM
<0.3 @ 20 CFM
Power Consumption (Watts) 23 @ 40 CFM
21 @ 20 CFM
17 @ 10 CFM
Speed (RPM) 1479 @ 40 CFM
1292 @ 20 CFM
1095 @ 10 CFM
Current (Amps) 0.15 @ 40 CFM
0.10 @ 20 CFM
0.09 @ 10 CFM
Power Rating (V/Hz) 120/60
Motor Type AC Condenser
Type of Motor Bearing Ball
Thermal Fuse Protection Yes
Blower Wheel Type 2 x Sirocco
Heating % 66% @ 30 CFM
Cooling % 36% @ 29 CFM
Duct Diameter (inches) 2 x 4"
Mounting Opening (inches sq.) 19 1/2" x 14 1/4"
Grille Size (inches sq.) 20 3/4" x 16 3/4"
Light No
Washington State VIAQ Code Yes
California Title 24 Compliant Yes
Mfg in ISO 9001 Certified Facility Yes
Gross Weight (lbs.) 24
