Pioneer® Quantum Ultra™ 9,000 BTU 24 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
+5
+4
+3
+2

Pioneer® Quantum Ultra™ 9,000 BTU 24 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Store/Mini Split Systems/Pioneer Mini Split Systems
SKU WYT009ALSI24RL
$1 327.00
Sold out
was $1 439.00 Save 8%
Standard Installation Kit with Copper Pipes Includes piping kit and communication cable in selected length, 10 Ft. drain hose, and a 2-1/2 inch wall sleeve with cap and packing putty packet
Please choose
EZFlex™ Installation Kit with Flexible Pipes Includes piping kit, communication cable, and drain hose in selected length, and a 3-1/8 inch wall sleeve with cap and 2x packing putty packets
Please choose
Sold out
Product Details

    Summary

    • High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
    • Cooling capacity: 9,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
    • Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
    • Voltage: 110/120V, 60Hz, 1Ph
    • Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
    • Variable-Speed DC Inverter Driven Performance
    • Factory-Precharged with Environmentally Friendly R454b Refrigerant
    • Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

    Features

    • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
    • Dual-Drainage Ports
    • Washable, Reusable Air Filters
    • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
    • Functional Remote with:
      • ECO and SLEEP Modes, for Energy-Conservation
      • Timer On/Off Control
      • TURBO, for Times of High-Demand
      • Self-Clean Cycle
      • MEMORY, to Recall Favorite Settings
      • IFEEL, to Detect and Adjust to Local Temperature

    Technical Information & Performance

    • AHRI Certificate
    • Energy Guide
    • System Kit
      • Power Supply: 110~120V, 60Hz, 1Ph
      • Cooling Rated Capacity: 9,000 BTU/h
      • Cooling Capacity Range: 2,400~11,000 BTU/h
      • Cooling SEER2: 24.0 BTU/W.h
      • Cooling EER2: 13.0 BTU/W.h
      • Heating Rated Capacity: 10,000 BTU/h
      • Heating Capacity Range: 2,400~11,000 BTU/h
      • Heating HSPF2 (Region IV): 10.0 / 8.6 BTU/W.h
      • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
      • Refrigerant Type: R454b
      • Recommended Room Size: 150~350 Sq.F
      • Minimum Room Size: 28 sq ft
      • Minimum Installation Height: 6 ft
      • Piping Diameter:1/4 x 3/8"
      • AHRI Reference: 217048748
    • Indoor Unit
      • Part Number: WT009ALSI24HLG
      • Air Flow (Turbo/Hi/Med/Lo/Mute): 326/283/235/188/153 CFM
      • Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
      • Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
      • Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
      • Net / Gross Weight: 20.7 / 25.1 lbs.
    • Outdoor Unit
      • Part Number: YN009ALSI24RPG
      • Breaker Needed: 20A (single-pole)
      • Sound Level: 50 dB(A)
      • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
      • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
      • Net / Gross Weight: 53.6 / 60.2 lbs.

    Dimension Chart

    32¼ 7⅝ 12 31⅞ 12 21⅝ 2¼ ¾ 8½
    Pioneer® Product Series

    Quantum Ultra™ High-Wall Series

    At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

    IMPORTANT
    The outdoor unit is pre-charged with
    R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

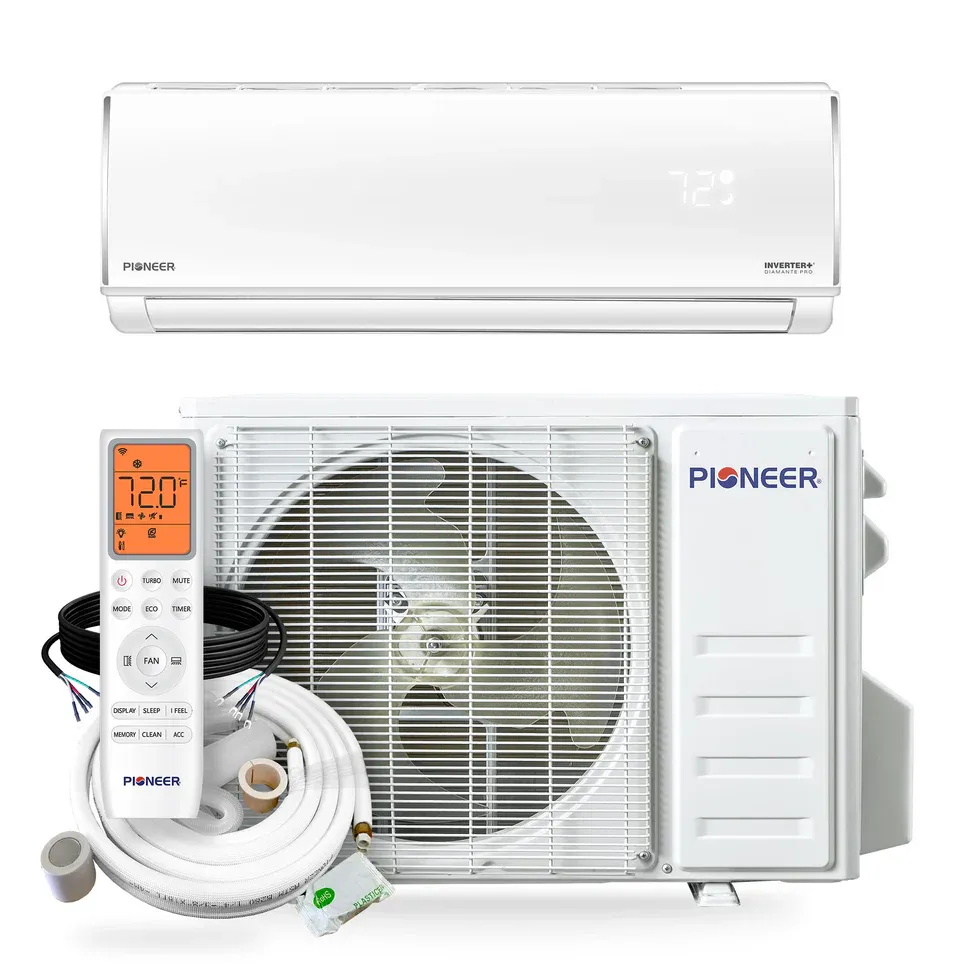

    What's Included in Your Purchase

    • Indoor Unit
    • Outdoor Unit
    • Wireless Remote Control
    • Remote Control Wall Holder
    • Remote Control Batteries
    • Customizable Length Copper Lines
    • Customizable Length Electrical Wire
    • 10 Ft. Drain for indoor/outdoor
    • Wall Passage Sleeve
    • Putty for Wall Hole
    • Leak Guard Sealer
    • Wrapping Tape
    • Installation Manual
    • User’s Manual

    Product Warranty

    Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

    • Up to 5 years Warranty for Parts
    • Up to 5 years Warranty for Compressor

    Manuals & Documents

    • Technical Brochure
    • User & Installation Manual
    • Service Manual
