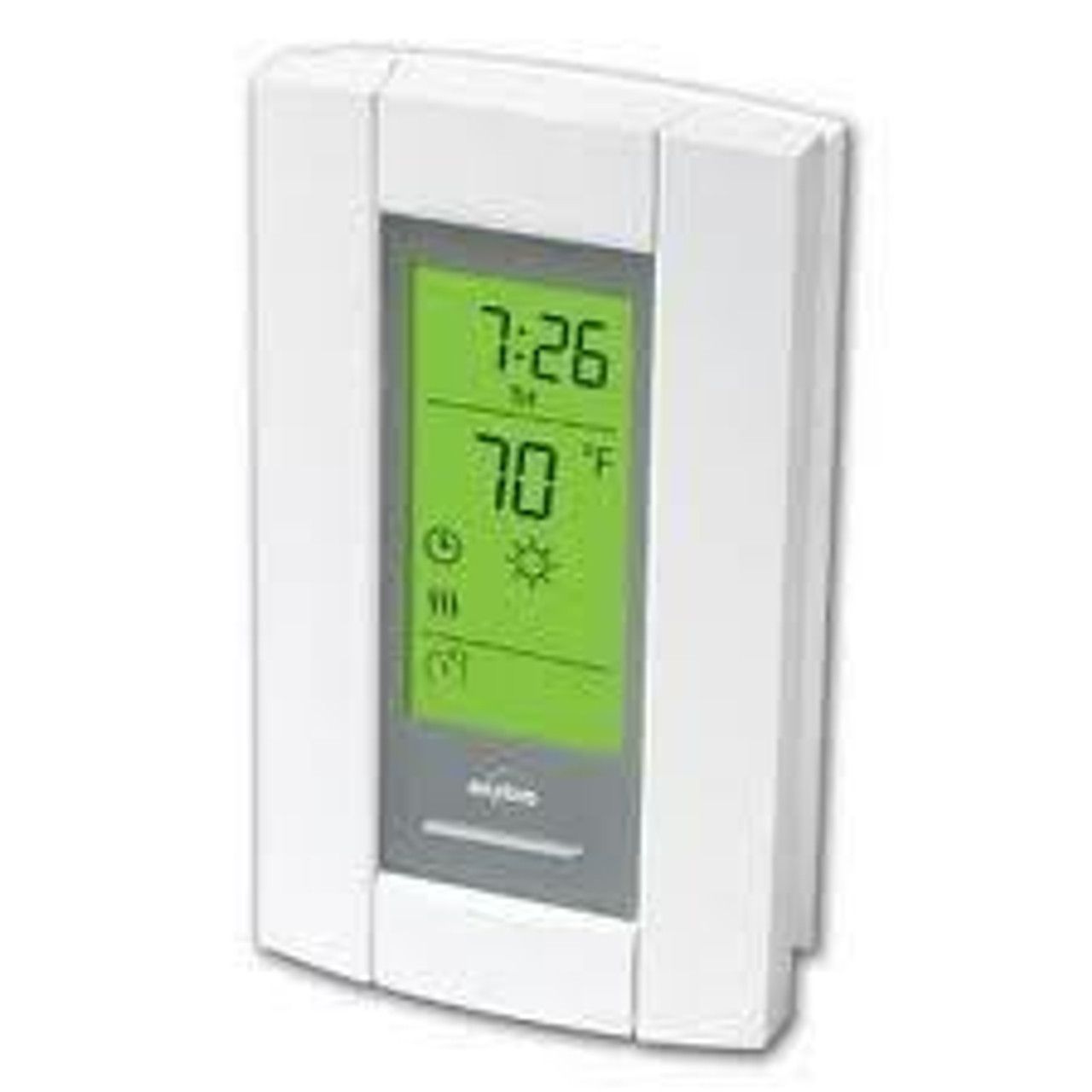

Each thermostat can control up to three (3) 500 watt envi wall mounted heaters. These high capacity thermostats provide for the greatest number of heaters to be controlled with a single thermostat. The TH115 is also the slimmest of all our thermostat models. TH115 is equipped with flexible programming to accommodate all types of schedules, a large and legible LCD screen as well as clearly identified buttons.
LOAD: 2000 watts @ 120 volts 16.7 A resistive load 250 watts min. (1A)
OPERATING MODES: Manual Automatic with temporary bypass
PROGRAMMING: 7-day independent programming, 4 settings / day Pre-programmed or personalized schedule** Early Start function** Temperature memory**
PROTECTION: Protected memory No battery required
CONNECTION: Single pole, 4 wires
SIZE: 70 x 124 x 23 mm 2.8 x 4.9 x 0.9 inches
* : This thermostat is equipped with a micro processor that analyses the system's past performances in order to optimize future commands. At the beginning of each cycle, the system sends a command that defines the portion of time the unit is heating during the next cycle.
** : The user can enter a daytime, night-time and vacation time temperature.
