BRAND NAME

MRCOOL

SERIES

Universal R-454B

MODEL

UAH18060-O

GTIN

00840255587860

UPC

840255587860

UNIT TYPE

Universal Series Air Handler

SHORT DESCRIPTION

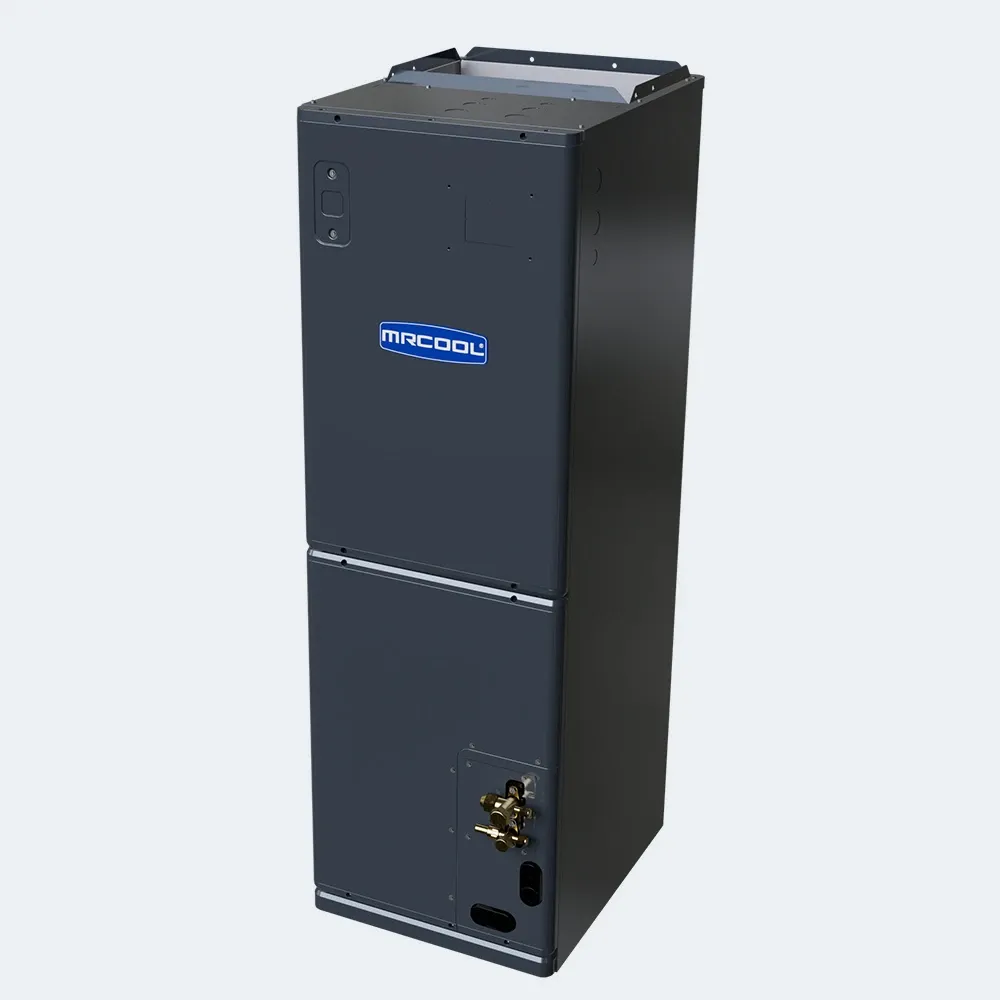

Universal Series 60,000 BTU Air Handler

LONG DESCRIPTION

The MRCOOL® Universal® Series 60K Air Handler is built to deliver powerful, energy-efficient climate control for large residential spaces. No matter the season, it ensures consistent airflow and dependable indoor comfort—making it an ideal solution for homeowners seeking high-capacity performance without sacrificing efficiency. Designed with installation versatility in mind, this air handler supports vertical, horizontal, and downflow configurations. Its compact footprint allows for easier placement in tight mechanical spaces, closets, attics, or basements—giving homeowners and contractors more flexibility during setup. To further simplify installation, the unit is fully compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, saving time, reducing labor, and minimizing the chance of installation error. For enhanced performance in colder climates, the system also supports optional Universal® Series Heat Kits. These kits provide additional heating output when temperatures drop and serve as an emergency backup source of heat. Engineered for durability and quiet operation, the 60K Air Handler features an M-shaped evaporator coil that increases the heat exchange surface area, boosts airflow, and helps maintain system efficiency. Constructed from 100% aluminum, the coil is corrosion-resistant, providing long-term reliability and reducing maintenance needs. Despite its power, the unit runs quietly—producing sound levels similar to a standard dishwasher or everyday conversation. The MRCOOL® Universal® Series 60K Air Handler is backed by a 10-year parts warranty and a 2-year limited labor warranty, offering peace of mind and long-lasting value for your home.

CFM

1801.1/1648.1/1500.9/1236.1/N\A

TONNAGE

5

VOLTAGE (V)

115/208/230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

14.5/10

MOUNT TYPE

Multi-Position

COLOR

Dark Grey

REFRIGERANT TYPE

R-454B

DECIBEL RATING (DBA)

60/57/54.5/37/N\A

DECIBEL RATING LOW (DBA)

37

DECIBEL RATING HIGH (DBA)

60

NUMBER OF SPEEDS

4

MAX LINESET LENGTH (FT)

246

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

FILTER TYPE

Replaceable

FILTER SIZE

20 x 20 x 1

METERING DEVICE

EXV

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

Yes

AUXILIARY HEATER SIZES

10 KW / 15 KW / 20 KW

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

BASE WARRANTY

10 Year Parts

BASE PARTS WARRANTY

10 Years

BASE LABOR WARRANTY

2 Year

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes
